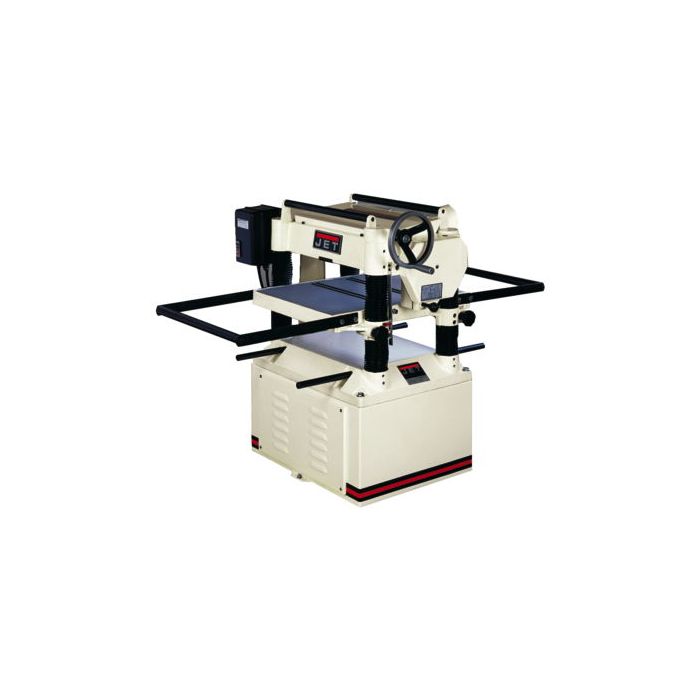

JET 708528 JWP-208-1, 20" 3HP, 1Ph Planer
SKU
JT9-708528
$4,289.00
Ships direct from manufacturer?
FREE SHIPPING! ON ORDERS OVER $99
The JET JWP-208-1 planer quickly and quietly transforms rough lumber into smooth boards, with a full 20 inch planing width. Its heavy-duty cast iron and steel construction keeps the workpiece steady and supported, while the conveniently located two-speed gear box allows for quick and easy feed rate adjustments. This machine means business with a powerful 3 HP induction motor. You’ll appreciate the sets of three steel infeed and outfeed rollers to help prevent annoying snipe. A large cast-iron table with smooth-as-glass surface makes this planer a beautiful addition to the shop. And since planers kick up a lot of dust, we made dust collection easy with an exclusive angled 4 inch dust port to keep your hose out of the way.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Jet |
|---|---|
| Condition | New |
| UPC | 66275510700 |
| Features |
|
| PDFs | |
| Horsepower | 3 HP |
| Motor Phase | 1 Ph |
| Stationary type | Floorstanding Model |
| Motor Voltage | 230 V |
|---|---|
| Prewired Voltage | 230 V |
| Amperage | 14 Amps |
| Cutterhead Speed (RPM) | 5000 RPM |
| Cutterhead Diameter | 3-3/16" |
| Number of Knives | 4 |
| Maximum Full Width Depth of Cut | 3/32" |
| Maximum Planing Width | 20" |
| Maximum Planing Thickness | 8" |
| Minimum Planing Length | 6-3/4" |
| Feed Rate (FPM) | 24/31 FPM |
| Table Size Length | 25-3/4" |
| Table Size Width | 20" |
| Dust Collection Minimum CFM Required | 400 CFM |
| Dust Port Outside Diameter | 5" |
