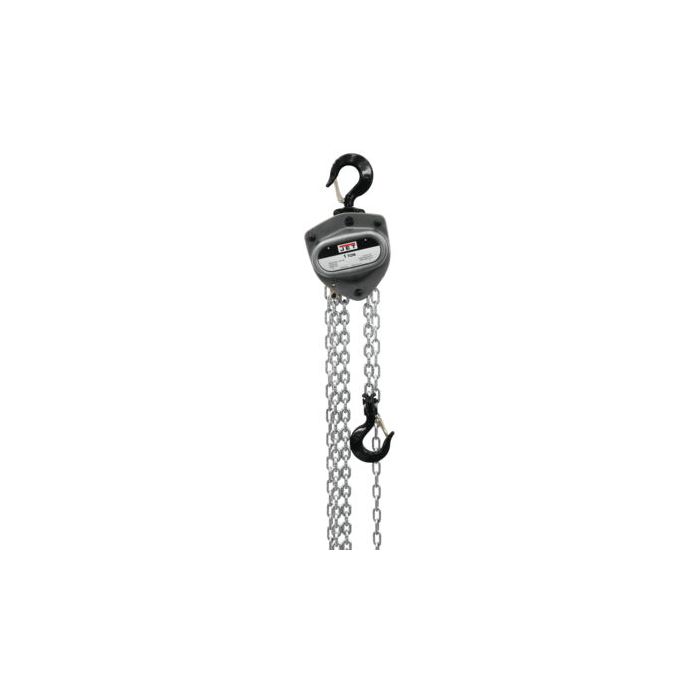

JET 203130 L100-100WO-30 1T Chain Hoist with OLP and 30' Lift

THE CHOICE IS CLE AR...
ATT ENTI ON TO DETAI L IN THE DESIG N OF THIS SERIES IS SECOND TO NONE.
• The drop forged, carbon steel hooks are quenched and tempered to increase strength and will slowly
stretch to indicate an overload situation.
• Cast steel safety latches, attached with Allen head screws and lock nuts, outclass the industry
standard of stamped safety latches.
• The induction hardened, zinc plated 100 grade load chain provides more strength then the common
80 grade load chain found on inferior lever hoists.
• Double sealed ball bearing supported load sheave provides efficient and smooth operation.
• The investment cast anchor plate, and all other internal parts are fully heat treated and quenched for
added strength and reliability.
• The triple spur gear drive train features alloy steel gears that have been heated treated, quenched
and then case hardened for a life time of service.
• All the internal parts are Zinc plated for additional corrosion protection.
• Finally, the patented fused brake disc design means little to no maintenance is required to keep these
hoists operational.
Every L-100 manual chain hoist is factory tested and comes with a signed test certificate from the
factory. All L-100 lever hoists comply with ANSI/ASME B30.16 and HST-2M standards. Don’t settle for
anything les
