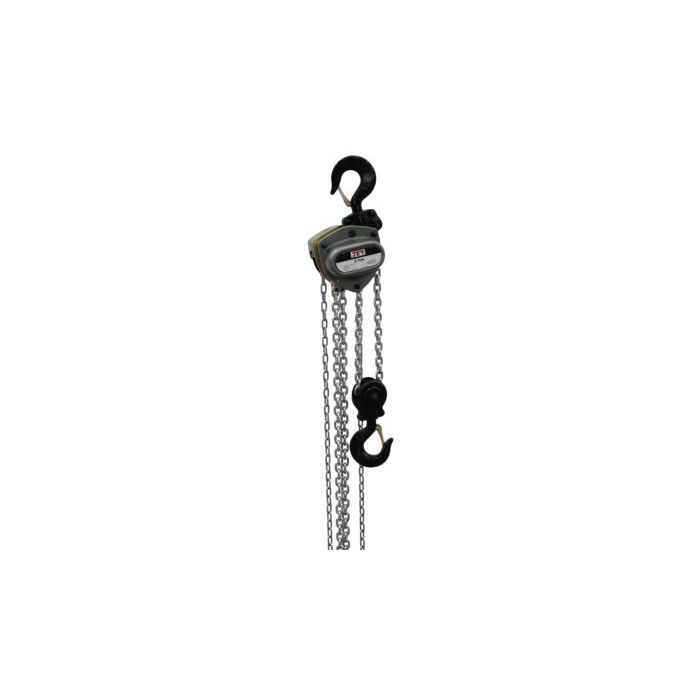

JET 207130 L100-300WO-30 3 Ton Chain Hoist with OLP and 30' Lift

SKU
JT9-207130
$1,627.00
Ships direct from manufacturer?
Usually ships in 24-48 hours

JET L-100 series manual chain hoists combine a true rugged industrial design with highly refined quality culminating in the last manual hoist you may ever need to purchase. The attention to detail in the design of this series is second to none. The drop forged, carbon steel hooks are quenched and tempered to increase strength and will slowly stretch to indicate an overload situation. Cast steel safety latches, attached with Allen head screws and lock nuts, outclass the industry standard of stamped safety latches. The induction hardened, 100 grade load chain provides 20% more strength then the common 80 grade load chain found on inferior hoists. The double enclosed brake cover keeps dirt and debris away from the brake mechanism. While the sealed ball bearing supported load sheave provides efficient and smooth operation. The investment cast anchor plate, and all other internal parts are fully heat treated and quenched for added strength and reliability. Finally, all the internal parts are zinc coated for additional corrosion protection. The triple spur gear drive train features alloy steel gears that have been heated treated, quenched and then case hardened for a life time of service. Finally, the patented fused brake disc design means little to no maintenance is required to keep these hoists operational. All L-100 series hoists are factory tested and certified. Each hoist comes with a completed test certificate from the factory. Don'’t settle for anything less.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerJet
ConditionNew
UPC66275605824
Features
  • Slip clutch design overload protection standard
  • Triple spur gears provide high efficiency with minimum effort
  • Heat treated and hardened premium 100 grade load chain
  • Drop forged alloy steel safety hooks feature wide throats for ease of rigging
  • Patented fused disc brake offers longer life and ease of replacment
  • Sealed ball bearing supported load sheave
  • Drive pinion supported on both ends with sealed ball bearings
  • Heavy duty cast safety latches
  • Proof tested with test certificate
  • Complies with OSHA, ANSI/ASME B30.16 and HST-2 standards
  • Smooth rolled edge on hand chain cover prevents side pull jamming
ApplicationFor Commercial and Industrial
Hoist Capacity (Tons)3 Ton
Hoist Max Lift Height (Feet)30'
Warranty

5 Year Warranty

Headroom20 1/8 Inch
Chain Size7.1 mm
MaterialSteel with durable powder coat
Number of Falls2
StandardANSI/ASME B30.16, HST-2, OSHA
