Festool 576799 LR32 Hole Drilling Set with T-Loc SYS

SKU
576799
$635.00
In Stock

Hole series are always drilled with a spacing of 32 mm and a hole diameter of 5 mm or 3 mm. The hole series drilling system is a complete set for fast and simple production of series of holes for shelf supports, rear wall supports and fittings with the OF 1010 or OF 1400 router. Everything in a single Systainer.

Achieve Ideal Results More Quickly Highly efficient production of series of holes with 32 mm spacing.

Convenient and Safe Everything together, everything well organised, everything is close to hand in the Systainer – the complete set incl. dowel drill with 5 mm diameter and fastening clamps.

Systems Get it Done: Compatible with and can be connected to all Systainer generations, mobile dust extractors and many other system accessories.

Customised Vehicle Integration

Thanks to the special holder, Systainer³ can be directly integrated into bott vario3 vehicle equipment.

Ergonomic Transportation

The front carrying handle allows for ergonomic carrying close to the body.

Open, Close, Connect with a Single Turn

All Systainer³ can be connected to one another and to other generations. The content is accessible at all times, without having to disconnect them first.

A tidy Storage System

Systainer³ units can be connected to many other system accessories, e.g. mobile dust extractors.

All-round Protection

Everything is effectively protected against dust, spray water or changes in temperature in the Systainer³.

Content Security

Thanks to the integrated latch, the content of the Systainer³ can be locked securely.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerFestool
ConditionNew
UPC04014549381335
Features
  • Everything that you need for a series of holes at hand in one Systainer
  • With the LR 32 system – comprising the guide rail FS 1400/2-LR 32 or FS 2424/2-LR 32 and the hole drilling system – precise rows of holes spaced 32 mm apart can be drilled with the Festool router
  • The LR 32 guide rail is aligned quickly and parallel to the two side stops, which are positioned by means of an adjustable stop at the workpiece and guide rail
  • The guide rail is precisely positioned with 9, 5, 16 or 32 mm edge clearance over the stopper in the longitudinal direction
  • Centring mandrel for perfect centring of the router on the guide plate
  • Spring-loaded positioning rocker for effective operation when drilling the hole series
  • Perfectly guided through fine adjustment of the guide play and additional handle on the guide plate
  • Properly secured thanks to the supplied guide rail clamps
  • The most important hinge location cutters are already included in the set
  • For use with hole line guide rails

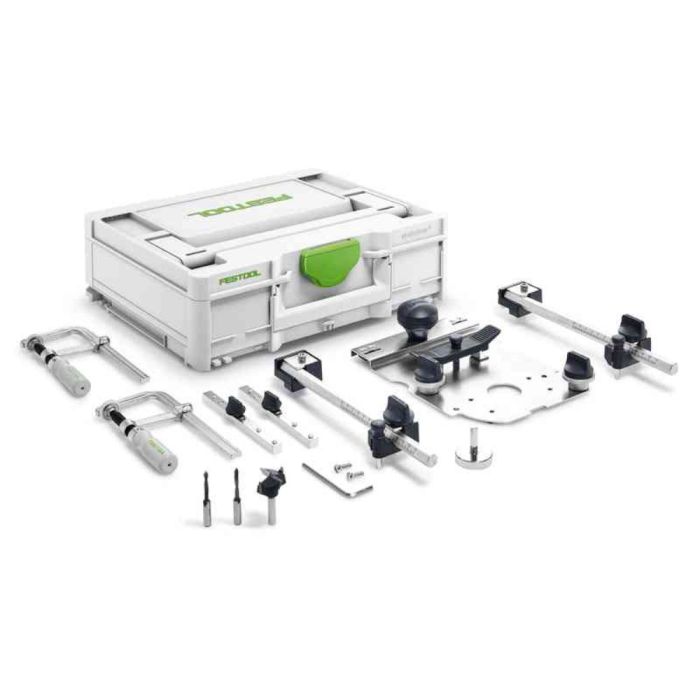

Includes
  • Guide Plate
  • Centring Mandrel
  • Hinge Location Cutter HM Ø 35 mm
  • Dowel Drill HW Ø 5 mm (V-shaped Tip)
  • Dowel Drill HM Ø 5 mm (with Centring Bit and Pre-cutter)
  • 2 Parallel Side Fences with Adjustable Stop
  • FSZ 120 Fastening Clamps (two Units)
  • Longitudinal Stop
  • Screwdriver, WAF 5
  • Systainer SYS3 M 112
ApplicationPreparing Holes Series with 32 mm Spacing, Drilling of Fittings Like Cupboard Hinges
TypeHole Drilling Set
Hole Spacing32.00 mm
Length of Series of Holes (Without Guide Extension)1400 / 2424
Side Stop Setting Range0 - 110 mm
