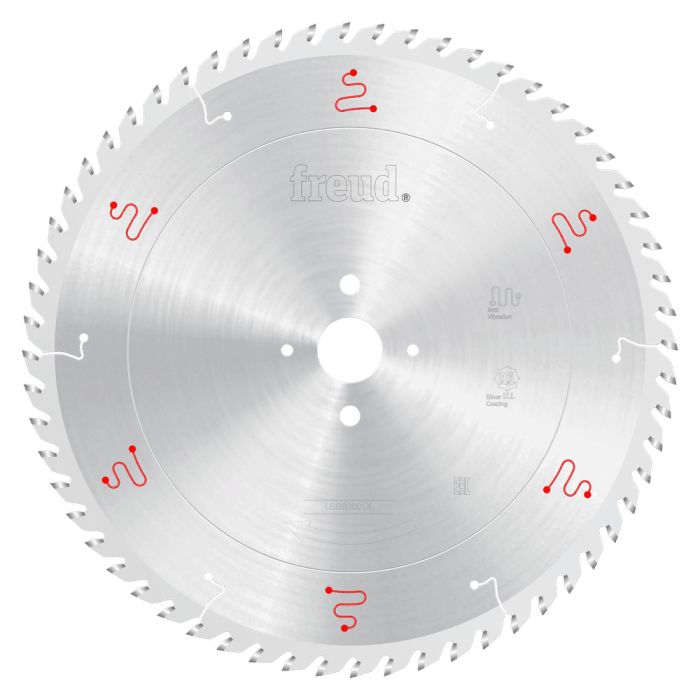

Freud’s innovative X-series of LSB Panel Blades offer ground-breaking design to provide superior performance, extremely precise cuts, and virtually no run out. These X-series Panel Saw Blades deliver 2X the life of existing LSB saw blades.
WARNING: Proposition 65 Warning for California Residents View Details
Extended (X) Series incorporates unmatched accuracy and precise design enabling manufacturers to increase efficiency, reduce down time, and lower tooling cost
Silver I.C.E. (Industrial Cooling Element) Coating leaves a slick surface on the blade body to reduce heat and drag, enabling the blade to last longer
Exclusive TiCo Hi-Density Carbide designed and manufactured by Freud specifically for each cutting application to maximize cutting life and material finish in a variety of materials
Anti-Vibration design reduces vibration above and beyond any other blade resulting in superior performance
Blade Material
Carbide
Number of Teeth
60
Type
Saw Blade
Arbor
60 mm
Diameter
600 mm
Grind
TCG
Hook Angle (a°)
15 Deg
Blade Thickness (Kerf)
5.8 mm
Pinholes
2/11/115 + 2/19/120
Plate
4 mm
Suitable for Use with
Horizontal Beam Saw and Table Saw or Miter Saw
Application
To Size Single or Multiple Panels, and for Cutting Wood Panels, Plastic Materials, Non-Ferrous Metals, Laminate, Melamine, Double Sided Laminate/Melamine, Veneered Plywood, Double Sided Veneers, Plywood, MDF, OSB, Chipboard, Particle Board, Fiber Board
