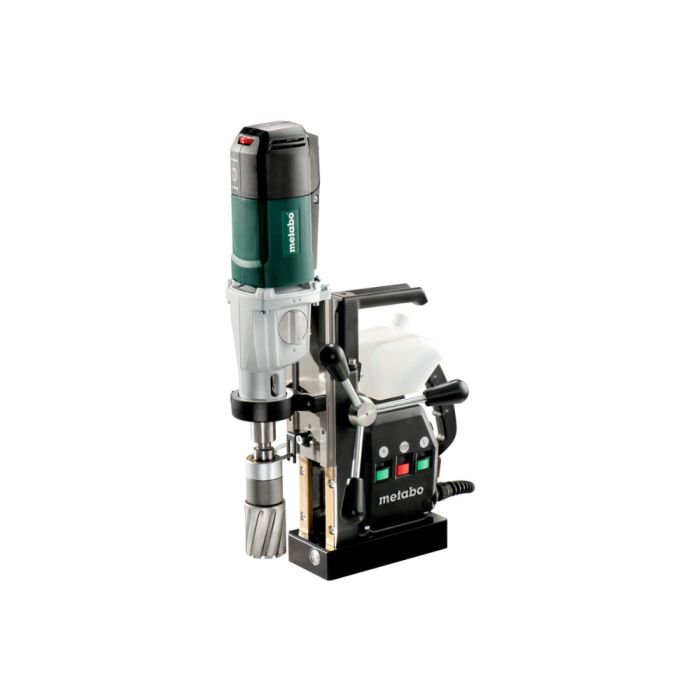

Metabo 600636620 MAG 50 110-120 V Magnetic Core Drill

SKU
600636620
$2,121.99
Ships direct from manufacturer?
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerMetabo
ConditionNew
Features
  • Magnetic core drill with large depth of feed, therefore suitable for use of core drills, spiral drills and countersinks
  • Magnetic base with high holding power permits working on vertical surfaces and overhead
  • Metabo Long-life motor with patented dust protection for long service life
  • Vario-Tacho-Constamatic (VTC)-Full Wave Electronics for work with materials requiring customised speeds, which remain constant under load
  • Clockwise/anti-clockwise rotation with thread cutter
  • Durable two-speed gearbox with oil bath lubrication for ideal speeds
  • Integrated coolant container for easy to dose internal cooling of the core drill
  • Vario Tacho Constamatic (VTC) Full-wave Electronics with Thumbwheel
    for working at customised speeds to suit the application material and speeds that remain almost constant, even under load
  • Bright LED light for easy alignment in poor light conditions
  • Swarf protection can be fixed without tools and protects the user from metal shavings and tool contact
  • Protective circuit starts motor only if the magnet is activated
  • Overload protection: protects the motor from overheating
  • Restart protection: prevents unintentional start-up after power supply interruption
  •  Plastic carry case
  • Lockable slide for comfortable tool change
  • Handle for easy carrying and lifting
  • Resistant mains cable (5 m) with rubber shroud

Scope of Delivery:

  • Industrial holder for Weldon shank 19 mm
  • Safety strap
  • Hexagon socket wrench SW 5
  • Swarf protection guard
  • Transport case
  • Ejector pins 75 and 100 mm
  • MK 2 drift key
Electric BrakeNo
Variable speedNo
Type Core Drill
Voltage 110-120 V
Frequency 50 - 60 Hz
Rated Input Power 1200 W
Output Power 620 W
Maximum Drill-Diameter with Core Drill 2"
Maximum Drill-Diameter with Spiral Drill 3/4"
Maximum Drilling Depth 2"
Thread Cutting M 16
No-Load Speeds (RPM) 100 - 250 / 200 - 450 RPM
Speeds at Rated Load 250 / 450 RPM
Bit Retainer Morse taper MK 2 / Weldon shaft 19 mm (3/4")
Weight 28 lbs
Cable Length 16'
Torque 797 / 443 in-lbs
Maximum Depth of Feed 6 5/16"
Maximum Magnetic Holding Force 12250 N
Dimensions of the Magnet Base 3 9/16" x 7 1/2"
Height Carriage Lowest Position 18"
Height Carriage Topmost Position 24"

Vibration

Drilling in Metal 2.5 m/s²
Uncertainty of Measurement K 1.5 m/s²

Noise Emission

Sound Pressure Level 79 dB(A)
Sound Power Level (LwA) 92 dB(A)
Uncertainty of Measurement K 3 dB(A)
