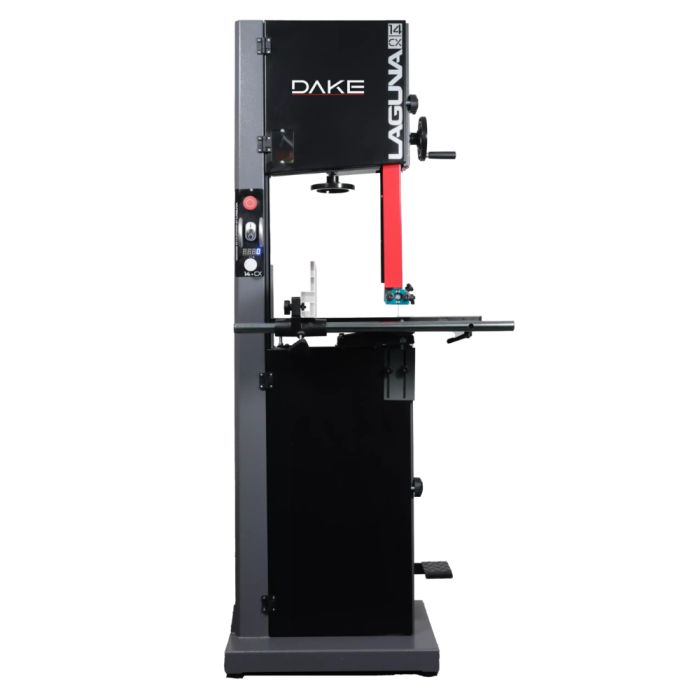

Laguna MB14CX 14|CX Wood/Metal Bandsaw Dake

SKU
MB14CX
$2,999.00
In Stock?
The 14CX combines the reliability and performance of our traditional woodworking bandsaws with new enhanced upgrades that now enables the cutting of ferrous metals. With the new addition of a Digital Readout paired with a Speed Control Knob, 2 Speed Pulley system, and electronic variable speed, we can now achieve precise blade speeds measured in Surface Feet Per Minute (SFPM) to use the 14CX in metalworking applications. These additions allow for efficient and accurate cutting results when cutting different materials, including steel, iron, stainless steel, and more. In addition, the foot brake system on the 14CX has been improved with a larger brake disc, providing enhanced stopping power that ensures our safety and control during operation. Comes standard with a Laguna Bi-Metal 1/2" x 10/14 Variable TPI Blade.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerLaguna
ConditionNew
Features
  • Quick-release tension
  • Rack and pinion upper guide
  • Premium anodized aluminum throat plate
  • Safety key
Includes
  • Stand
  • 6' Cord with Plug
TypeBandsaw
Motor Horsepower1 3/4 HP
Motor Voltage166 VDC
Supply Voltage110 V Single Phase
Recommended Breaker20 Amps
Throat13 5/8"
Table Tilt Right45 Deg
Table Tilt Left7 Deg
Miter Slot3/8" x 3/4"
Table Height38"
Blade Speed Range High160 - 4400 ft/min
Blade Speed Range Low60 - 1600 ft/min
Fly WheelCast Iron
Resaw Capacity13"
Minimum Blade Length114 3/4"
Maximum Blade Length116"
Minimum Blade Width1/8"
Maximum Blade Width3/4"
Height70 1/2"
Machine Dimensions (W x D)29 3/4" x 28"
Base Footprint22 11/16" x 17 9/16"
Machine Dimensions with Mobility Kit (W x D)36 5/8" x 28"
Base Footprint with Mobility Kit33" x 20 1/2"
Positive Stop90 Deg
Table Size21 1/2" x 16"
Heavy Duty Cast Trunion8" x 13"
PlugNEMA 5-15P
Hi/Low Aluminum Fence18" x 5 1/2" x 1/2"
Dual Voltage Motor115/230 V
Pre-Wired115 V
GuidesLaguna Ceramic
Weight264 lbs
Mobility KitOptional "MBA14/12 Wheel System"
Industrial Work LightOptional
