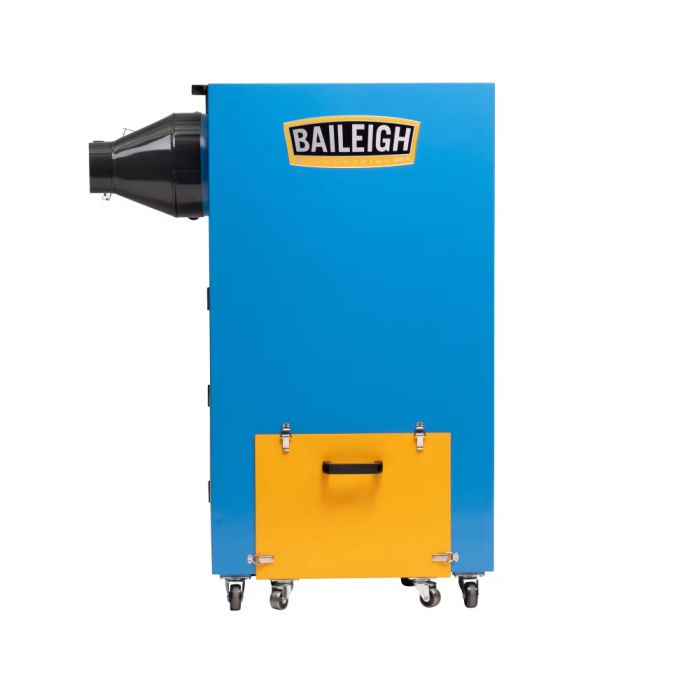

Baileigh Industrial BA1-12449, MDC-550H 5HP 460V 3PH Dry Dust Collector
Not every shop runs on 230V. The Baileigh MDC-550H is the 460V/3-phase version of Baileigh’s UL 1017-certified 5 HP dry dust collector, built for fabrication shops, precision machining operations, and MRO facilities running higher-voltage service.
Two 5-micron paper filters capture 84.3% of 1–3 micron particles and 95.4% of 3–10 micron particles, while 3,583 CFM at the 10" inlet (1,487 CFM at 5") and up to 10,889 FPM of velocity move dust efficiently away from the work area.
The dual 5" inlet port design supports two wide-belt sanders or polishing stations from a single unit, and the 126L fireproof bag keeps disposal simple. It draws just 7A at 460V (15A breaker) and is backed by a 1-year parts warranty plus Baileigh Lifetime Technical Support.
Fabrication Shops.
Typical work: Multi-material finishing — aluminum, steel, stainless — on 460V equipment.
What they need: Needs a UL-certified dry (or wet) system matched to the material being polished.
Industries: Construction, Agriculture, Appliance Mfg, HVAC.
Precision Machining.
Typical work: Grinding and polishing station dust extraction in higher-voltage facilities.
What they need: Needs multi-material-ready collection with 3,100+ CFM.
Industries: Aerospace, Medical Devices, Automotive, Electronics, Defense.
Specialty MRO.
Typical work: Multi-station dust collection across a variety of polishing activities.
What they need: Needs a versatile system that keeps the workplace safe.
Industries: Marine, Oil & Gas, Power Generation, Rail.
Common Applications.
Ferrous metal grinding & deburring: pairs with grinding stations, polishing stations, and deburring equipment.
High-volume wide-belt sanding with heavy dust loads: built for ferrous or non-reactive metal polishing at production volume.
460V facilities: the lower amp draw (7A vs. 14A at 230V) simplifies electrical planning in higher-voltage shops.
Works with: Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Cast Iron, Tool Steel.
Warranty & Support: 1-year parts warranty plus Baileigh Lifetime Technical Support.
| Manufacturer | Baileigh Industrial |
|---|---|
| Condition | New |
| UPC | 19907085140 |
| Features |
|
| Warranty | 1 Year |
| Type | Dry Dust Collector |
|---|---|
| Amp Draw (amps) | 6.5" |
| Assembled Dimensions | 50" x 42" x 51" |
| Filter Size (W x L x D) | 19-3/8" x 25" x 1-25/32" |
| Filter Type | 5 Micron Filter paper, Anti-Spark/Fireproof |
| Horse Power | 5 HP |
| Input Power | 460V |
| Maximum CFM | 3,700 |
| Model Number | MDC-550H |
| Motor Phase | Three |
| Motor Voltage | 460V |
| Number Ports | 2 |
| Port Size | 5" |
| Prop 65 | Cancer and Reproductive Harm |
| Weight | 318 lbs |
