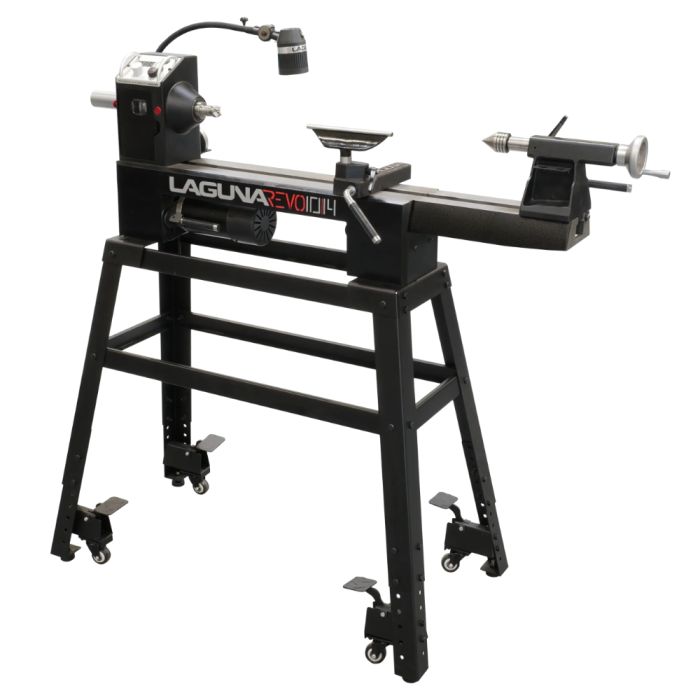

Laguna MLAREVO10A, Revo 10/14 Lathe

SKU
MLAREVO10A
$599.00
Ships direct from manufacturer ?

Compact in size but big on performance, the all-new Laguna Tools Revo 10|14 Lathe is the perfect blend of innovation, control, and classic craftsmanship. Engineered for precision turning in tight spaces, this upcoming model brings the quality of the Revo line to a smaller footprint—without compromise.

Ideal for hobbyists, professionals, and makers who want Revo power in a more compact form, the Revo 10|14 is built to inspire creativity at every turn.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerLaguna
ConditionNew
Features
  • 110 – 120 Volt AC
  • 1HP PWM Motor
  • Electrical Power – 120 Volt AC – Additional 120 Volt Outlet for Optional LED Work Lights
  • Spindle Threads – 1 Inch x 8 TPI – #2 MT Internal Taper
  • Tool Rest – 1 Inch Post Diameter with 6mm Hardened Steel Leading Edge
  • Electronic Speed Control with 3-Step Pulley
  • Digital RPM Readout Display
  • Spur and Live Center Drives
  • Cast Iron Tailstock with Self-Ejecting Quill
  • Cast Iron Headstock with Projected Bearing Cone
  • 3″ Faceplate
  • Turning Capacity – 10″ Diameter over the bed – 14″ Length between centers. (254 x 355mm)
  • Tailstock Quill Travel – 3.5″ (92mm)
  • Push Button Spindle Lock
  • Headstock and Tailstock Bore – 3/8″ Through Bore
  • Speed Range – 950 – 3200 RPM High – 430 – 1450 RPM Mid – 250 – 850 RPM Low
  • Quick-Release Handle for Belt Tension
  • Dual doors for belt changes
  • Belt position window
Video

TypeLathe
Dimension (L x W x H)30.75” x 13.4” x 15.6”
