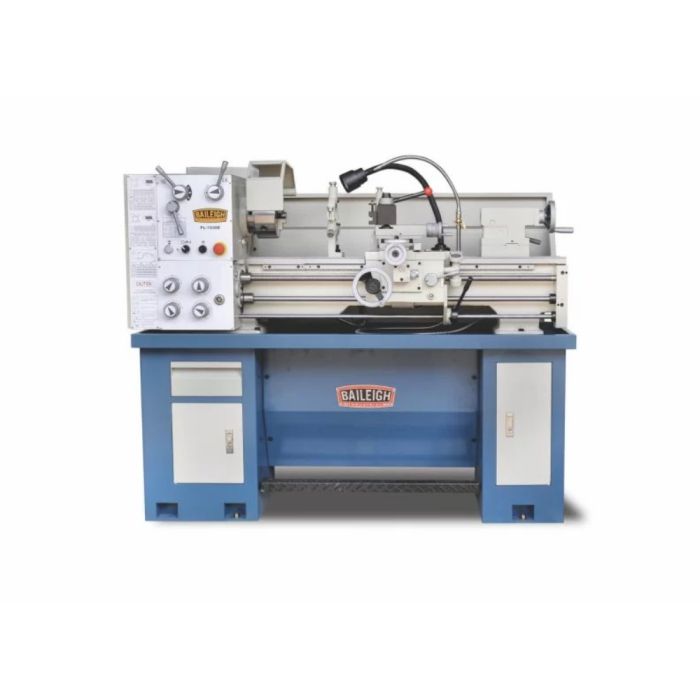

Baileigh Industrial BA9-1016616 PL-1236E-1.0, 12" x 36" Lathe Ships direct from manufacturer
This economical gear-head Metal Lathe is a perfect choice for schools, hobbyists, and maintenance shops. The PL-1236E includes a quick-change tool post and 2 chucks.
Covered by a 1-year parts warranty. You can count on lifetime technical support by phone from our team of reps with first-hand metalworking experience.
Questions? Not sure which is the best Metal Lathe for you? Call us at 1-920-654-5815 and talk to a Baileigh expert.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Baileigh Industrial Condition New UPC 00731325462708 Features 36" between centers 70 to 1400 rpm 220V 1-phase motor 12" swing Integrated gear system allows for taping, turning, and polishing All ways are ground and hardened to ensure long life Runs on 220-volt single-phase power and 70 to 1,400 rpm variable speed Capable of standard and metric threading Quick-change tool post helps you save time 3-jaw and 4-jaw chucks can hold both square and rounded materials Steady rest and follow rest brace the shaft and prevent wobbling to ensure high accuracy Facing plate lets you shape materials that are large but not long - Bolt your metal to the plate to keep it square and symmetrical Coolant system consists of a reservoir and pump in the base plus a hose you can point as needed Foot brake helps keep your shop safe and Halogen work light comes standard Warranty 1 Year
Type Lathe Distance Between Centers 36" Input Power 220 V / 1-Ph Leadscrew Thread Pitch 8 TPI Length of Gap 6" Model Number PL-1236E-1.0 Nose Radius D1-4" Quick Change Collet Size .625" x .625" Range of Cross Feeds (IPR) 0.007" - 0.0187"/rev Range of Inch Threads (TPI) 4 - 56 TPI Range of Longitudinal Feeds (IPR) 0.002" - 0.0548"/rev Range of Metric Threads 0.4 - 7 mm Spindle Bore 1.50" Spindle Diameter 1.250" Spindle Taper Morse #3 Spindle Travel 4" Weight 1395 lbs
