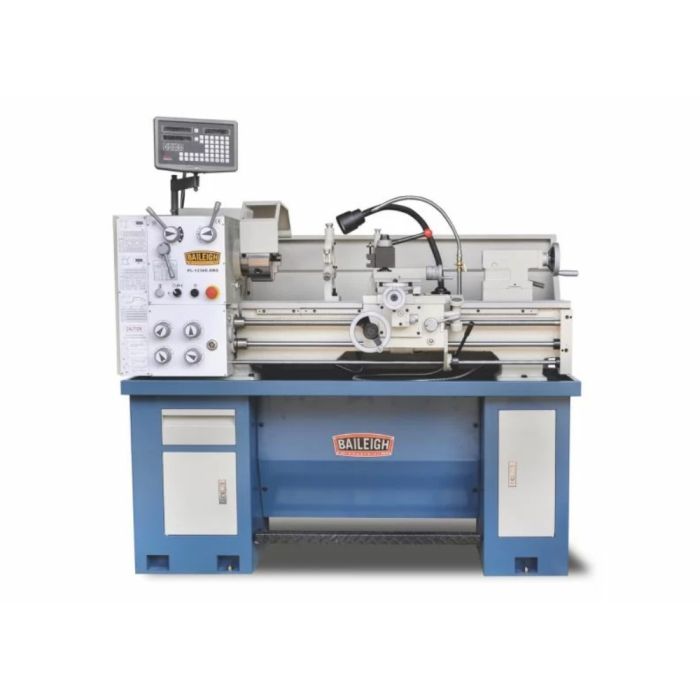

Baileigh Industrial BA9-1016617 PL-1236E-DRO-1.0, 12" x 36" Variable Speed Digital Readout Metal Lathe Ships direct from manufacturer
We added a DRO to our popular PL-1236E Metal Lathe, so you can adjust your settings more precisely. This model includes a quick-change tool post and a coolant system. Recommended for small fabricators, schools, or garages.
Covered by a 1-year parts warranty. You can count on lifetime technical support by phone from our team of reps with first-hand metalworking experience.
Call us at 1-920-654-5815 with any questions you have about this Digital Readout Metal Lathe.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Baileigh Industrial Condition New UPC 00731325462715 Features Integrated DRO 36" between centers 70 to 1400 rpm 220V 1-phase motor Integrated digital readout (DRO) helps you get repeatable results Quick-change tool post makes tooling changes more efficient and helps you save time Gear system allows for taping, turning, and polishing All ways are ground and hardened to ensure long life Runs on 220-volt single-phase power and 70 to 1,400 rpm variable speed - Capable of standard and metric threading 3-jaw and 4-jaw chucks can hold both square and rounded materials Steady rest and follow rest brace the shaft and prevent wobbling to ensure high accuracy Facing plate lets you shape materials that are large but not long - Bolt your metal to the plate to keep it square and symmetrical Coolant system consists of a reservoir and pump in the base plus a hose you can point as needed Foot brake helps keep your shop safe and Halogen work light comes standard
Type Lathe Distance Between Centers 36" Input Power 220 V / 1-Ph Leadscrew Thread Pitch 8 TPI Length of Gap 6" Model Number PL-1236E-DRO-1.0 Nose Radius D1-4" Quick Change Collet Size .625" x .625" Range of Cross Feeds (IPR) 0.007" - 0.0187"/rev Range of Inch Threads (TPI) 4 - 56 TPI Range of Longitudinal Feeds (IPR) 0.002" - 0.0548"/rev Range of Metric Threads 0.4 - 7 mm Spindle Bore 1.50" Spindle Diameter 1.250" Spindle Taper Morse #3 Spindle Travel 4" Weight 1420 lbs
