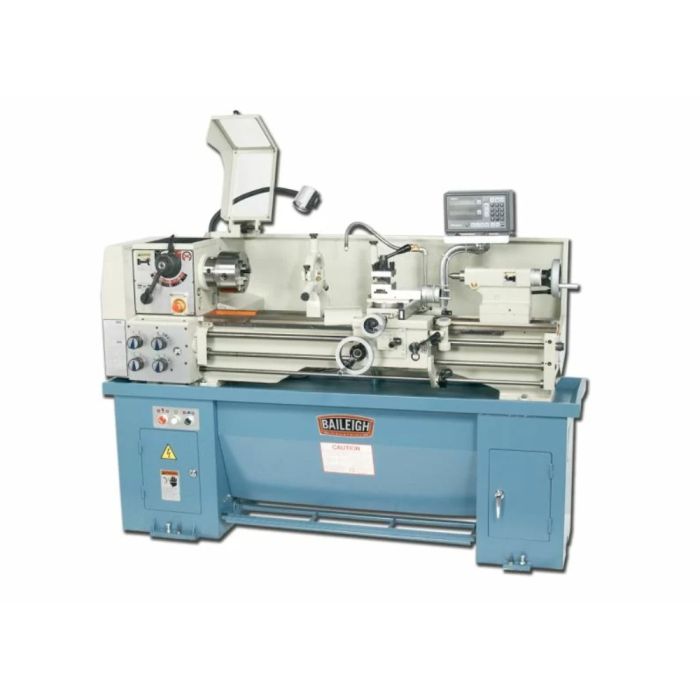

Baileigh Industrial BA9-1006057 PL-1340, 13" x 40" Precision Geared Head Metal Lathe

SKU

BA9-1006057

$19,799.00

Ships direct from manufacturer

Equipped with a Mitutoyo DRO, quick-change tool post, and cast iron base, this compact gear-head metal lathe is one of the most rigid in its class.

Questions? Not sure what’s the best metal lathe for you? Call us at 1-920-654-5815 and talk to a friendly Baileigh expert.

WARNING: Proposition 65 Warning for California Residents View Details

More Information
Manufacturer	Baileigh Industrial
Condition	New
UPC	00731325410440
Features	Mitutoyo DRO Quick-change tool post 40" between centers 70 to 2000 rpm 2 hp motor runs on 220-volt single-phase power with 8 speeds from 70 to 2,000 rpm is great for shops with limited power and no assembly required Comes with a factory installed Mitutoyo DRO (digital readout) for making precise cuts Capable of making metric and standard threads Quick-change 4-way tool post saves you time and hassle All movement of the machining carriage rides on precision ground and hardened slideways This is a gap lathe, so you can remove a section of the slide to fit a slightly larger diameter We use the best iron castings in the industry to support the ways and maintain high accuracy over many years of use Comes standard with 3-jaw chuck, headstock chuck guard with automatic safety switch, steady rest and follow rest Other features include an emergency foot brake, Halogen work light, and flood coolant system (with backsplash guard) to prolong machine life
Speed (RPM)	70 - 2,000 RPM
Warranty	1 Year

Type	Lathe
Center Height	6.5"
Compound Rest Travel	2.68"
Compound Rest Width	3"
Cross Slide Travel	6.29"
Cutting Tool Max Section	.625" x .625"
Distance Between Centers	40"
Input Power	220V 1-Phase
Lead Screw Diameter	0.875"
Leadscrew Thread Pitch	8 TPI
Longitudinal Feeds Imperial Qty Speed	32 / .0020" - .5480" / rev.
Longitudinal Feeds Metric Qty Speed	32 / .052 - 13.92 mm / rev.
Model Number	PL-1340
Modular Pitch Threads Range	21 / .2-3 M.P.
Quill Taper	Morse #5
Shipping Dimensions (L x W x H)	76" x 40" x 62"
Spindle Bore	1.5"
Spindle Taper with Sleeve	Morse #3
Swing Over Bed	13"
Swing Over Cross Slide	7.79"
Swing Through Gap	18.75"
Table Length	5.125"
Tailstock Spindle Travel	4.5"
Taper in Tailstock Spindle	1.65"
Threads Diametrical Quality Type (D.P.)	32 / 8-120 D.P.
Threads Imperial Quality Type (TPI)	31 / 4-56 TPI
Weight (Lbs.)	1630 lbs
Width of Bed	7.375"
