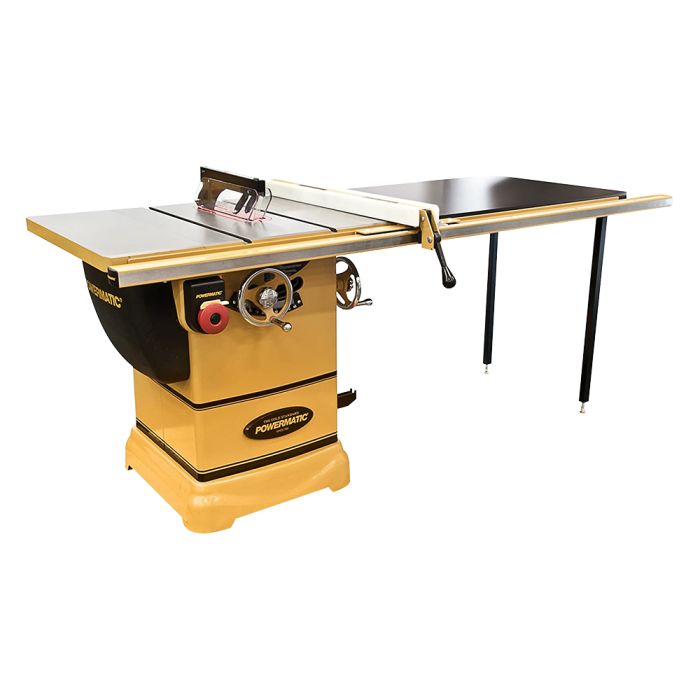

Powermatic 1791001K PM1000 115V Table Saw with 52" Accu-Fence System, 1 3/4HP/1Ph
Ships direct from manufacturer
Evolution represents a process that is never fully complete. For a woodworker, inspirations evolve as life experiences shape our creativity. Skills evolve as we share tips and techniques with friends and mentors. And our workshops evolve as we refine our skills. At Powermatic, we're proud to introduce the latest example of our own evolution, the PM1000 cabinet table saw. As with every product Powermatic builds, the PM1000 redefines the limits of design, innovation and durability.
WARNING: Proposition 65 Warning for California Residents
View Details
More Information
Manufacturer
Powermatic
Condition
New
UPC
73132526383
Features
Conveniently located hands free power switch Precision ground cast iron work surface features a beveled edge for smoother operation Tool-less guard assembly with independent side leaves is easy to use, maximizing safety Exclusive AccuFence provides rigidity and precision The sturdy miter gauge pivots 60 degrees to either side, allowing easy adjustment for a full range of cuts Requires only 115 volt connection for easy installation The poly-V belt drive system reduces vibration and maximizes efficiency A blade surround and collection hose provide an unobstructed path, maximizing dust collection Arbor lock allows for one handed blade changes with minimal tools Ergonomically designed 7 inch handwheels provide momentum – making blade height and bevel adjustments easy
PDFs
Horsepower
1.75 HP
Motor Phase
1 Ph
Size (Inch)
10"
Stationary type
Contractor
Warranty
5 Year Warranty
Motor Current 15/7.5 Amps Motor Voltage 115/230 V Prewired Voltage 115 V Recommended Circuit Size 20 Amps Dust Port Outside Diameter 4" Dust Collection Minimum CFM Required (CFM) 350 CFM Table T-Slot 3/4" x 3/8" Table Size with Full Extensions 75 3/8" x 27" Table Size with Extensions 40" x 27" Table Size 20" x 27" Table Height from Floor 34 1/4" Table Type Cast Iron Maximum Rip Left of Blade 12" Maximum Rip Right of Blade 52" Table in Front of Saw Blade at Maximum Depth of Cut 10" Maximum Width of Dado 13/16" Maximum Diameter of Dado 8" Maximum Depth of Cut at 45 Deg 2 1/8" Maximum Depth of Cut at 90 Deg 3 1/8" Arbor Speed (RPM) 4,200 RPM Arbor Diameter 5/8"
