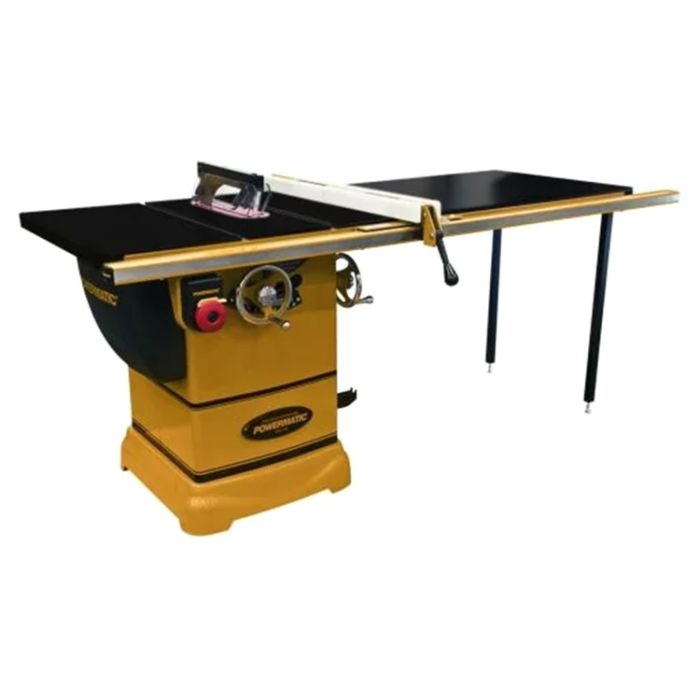

Evolution represents a process that is never fully complete. For a woodworker, inspirations evolve as life experiences shape our creativity. Skills evolve as we share tips and techniques with friends and mentors. And our workshops evolve as we refine our skills. The PM1000 cabinet table saw is an example of this. Now featuring our ArmorGlide Technology that is low-friction and rust-resistant, the PM1000 redefines the limits of design, innovation, and durability.
WARNING: Proposition 65 Warning for California Residents View Details
ArmorGlide Technology gives a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives more control
Miter gauge is built with robust materials with many positive stops for the most commonly used angles
Blade surround and collection hose provide an unobstructed path, maximizing dust collection
Arbor lock allows for one handed blade changes with minimal tools
Conveniently located hands free power switch
Ergonomically designed 7” handwheels provide momentum, making blade height and bevel adjustments easy
Exclusive Accu-Fence provides rigidity and precision
Precision ground cast iron work surface features a beveled edge for smoother operation
Requires only 115V connection for easy installation
The poly-V belt drive system reduces vibration and maximizes efficiency
Type
Table Saw
Arbor Diameter
5/8"
Arbor Speed (RPM)
4,200 RPM
Blade Diameter
10"
Dust Collection Minimum CFM Required (CFM)
350 CFM
Dust Port Outside Diameter
4"
Gross Weight
289 lbs
Maximum Depth of Cut at 45 Degrees
2 1/8"
Maximum Depth of Cut
2 1/8" or 3 1/8"
Maximum Diameter of Dado
8"
Maximum Rip Left of Blade
12"
Maximum Rip Right of Blade
52"
Maximum Width of Dado
13/16"
Miter Gauge Type
T-Slot with Stops
Motor Power
1 3/4 Hp
Motor Voltage
115/230 V
Net Weight
289 lbs
Overall Dimensions (L x W x H)
43" x 83" x 44"
Prewired Voltage
115 V
Recommended Circuit Size (Amps)
20 A
Style
Cabinet
Table Height from Floor
34 1/4"
Table in Front of Saw Blade at Maximum Depth of Cut
