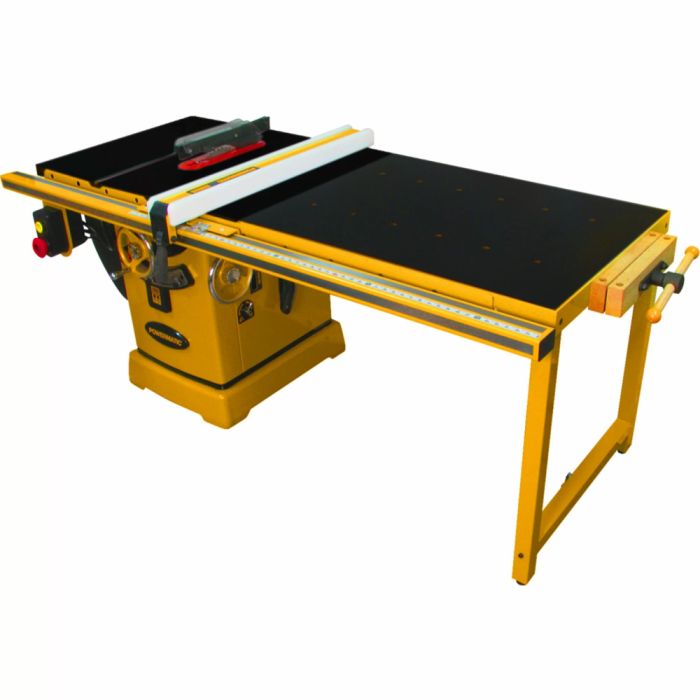

Powermatic PM1-PM25150WKT 10" 230V Workbench Table Saw with ArmorGlide

SKU
PM1-PM25150WKT
$7,039.00
Ships direct from manufacturer?

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the award-winning PM2000T table saw sets a new standard for innovation with an array of patented features and massive body design. The ArmorGlide coated cast iron tables are oversized, and the redesigned arbor lock lever is accessible from above the table top to eliminate the need for dual arbor wrenches. The quick-release riving knife design helps reduce the chance of kickback. The blade tilt scale features an integrated digital readout as well as adjustable angle indicators for repetitive bevel cuts. The redesigned integrated retractable hydraulic caster system lifts our table saw much higher than the previous model to assist when moving it over thresholds. A wide stance, heavy-duty box trunnion and concave teeth on the trunnion gears promote easier raising and tilting of the saw blade. A poly-V drive belt system results in quieter, more efficient power transfer from the motor to the arbor with virtually no vibration and less heat buildup. The improved built-in dust collection port provides convenient access to the inside of the saw cabinet for simple cleanup. The saw also has a proprietary safety switch with magnetic interlock, and the stop button can be knee activated.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerPowermatic
ConditionNew
Features
  • ArmorGlide Technology gives us a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives us more control
  • Miter guage is built with robust materials with many positive stops for the most commonly used angles
  • Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
  • Arbor lock for quick and easy blade changes
  • Integrated digital read out for precise bevel cuts
  • Integrated dust collection
  • Integrated hydraulic castor system for ease of movement around the shop
  • Matching beveled edge between table and extension wings
  • One-piece cast iron box trunnion provides the strongest stability of any Powermatic table saw
  • Precision-ground, high luster cast iron tabletops with front and rear edge bevel
Horsepower5 HP
Motor Phase1 Ph
Type Table Saw with ArmorGlide
Arbor Diameter 5/8"
Arbor Speed (RPM) 4,500 RPM
Blade Diameter 10"
Dust Collection Minimum CFM Required (CFM) 400 CFM
Dust Port Outside Diameter 4"
Maximum Depth of Cut at 45 Degrees 2 1/8"
Maximum Depth of Cut 2 1/8" or 3 1/8"
Maximum Diameter of Dado 8"
Maximum Rip Left of Blade 13 1/2"
Maximum Rip Right of Blade 50"
Maximum Width of Dado 13/16"
Miter Gauge Type T-Slot with Stops
Model Number PM2000T
Motor Amperage 4.8 Amps
Motor Voltage 230 V
Weight 405 lbs
Overall Dimensions (L x W x H) 84 3/4" x 39 1/8" x 40 3/8"
Prewired Voltage 230 V
Recommended Circuit Size 30 Amps
Style Cabinet
Table Height from Floor 35"
Table Size (L x W) 30 1/2" x 22"
Table Type Cast Iron
