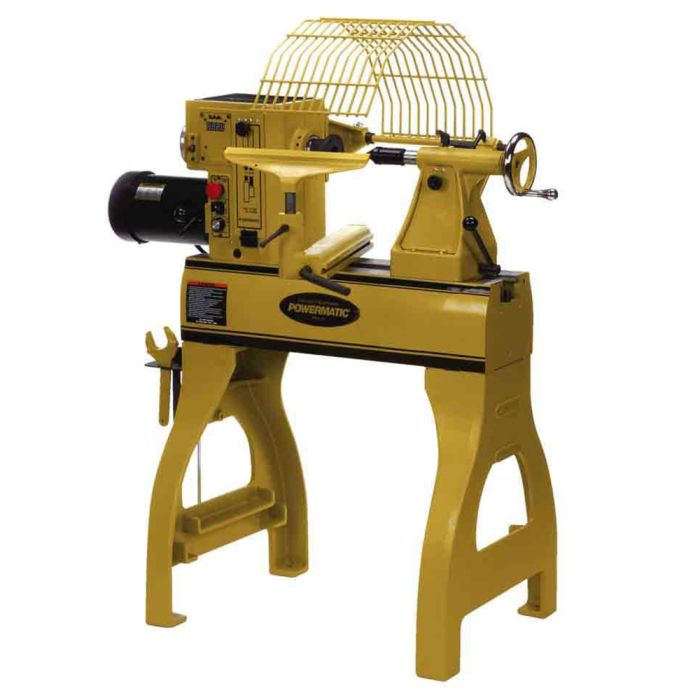

Powermatic 1792020 Short Bed Woodworking Lathe, 2HP 1/3PH

SKU
PM9-1792020
$5,939.00
Ships direct from manufacturer ?
The PM2020 lathe is perfect for turners short on space, or projects where a short bed is convenient. It features a sliding headstock, electronic variable speed with low and high speed ranges and the spindle lock. The enhanced features include a digital RPM readout, built in spindle indexing on the head stock and a re-designed tailstock with internal storage, chrome trimmed handwheels and a laser etched quill which is self-ejecting. Additional features include a two position mount for the optional bed extension, a sliding hammer knockout rod with brass tip, an attached tool caddy and a metal shelf for tool storage.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerPowermatic
ConditionNew
Features
  • Laser etched quill is self-ejecting
  • Sliding headstock with electronic variable speed
  • Digital RPM readout for accurate speed adjustments
  • Two position mount for optional bed extension
  • Set of dead centers which hold a spindle for visual comparison
  • Redesigned tool rest geometry allows for better chisel movement along the tool rest
  • Tailstock has internal storage for additional accessories and attached tool caddy allows convenient access to centers and wrenches
  • Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes and other equally spaced features
  • Brass tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers
  • Chrome trimmed handwheels are ergonomic for a comfortable feel
PDFs
Horsepower2 HP
Motor Phase3 Ph
Stationary typeShort Bed
Warranty5 year
TypeLeg Stand
Bed ConstructionCast Iron
Spindle TaperMT-2
Quill TaperMT-2
Centerline of Spindle to Floor (Adjustable)44
Headstock MovementFull Length of Bed
Swing Over Bed20"
Swing Over Tool Rest Base17"
Distance Between Center20"
Spindle Bore5/8
Tailstock Bore3/8
Ram Travel Quill Travel4 1/2
Number of Indexing Position48
Outboard Turning38
Speed (RPM)50 - 1200 RPM, 125 - 3200 RPM
High Spindle Speed (RPM)125 - 3200 RPM
Low Spindle Speed (RPM)50 - 1200 RPM
Spindle Thread1 1/4" x 8"
Outboard External Thread1 3/16 - 18"
Voltage230 V
Amperage6.2 Amps
Recommended Circuit Size20 Amps
