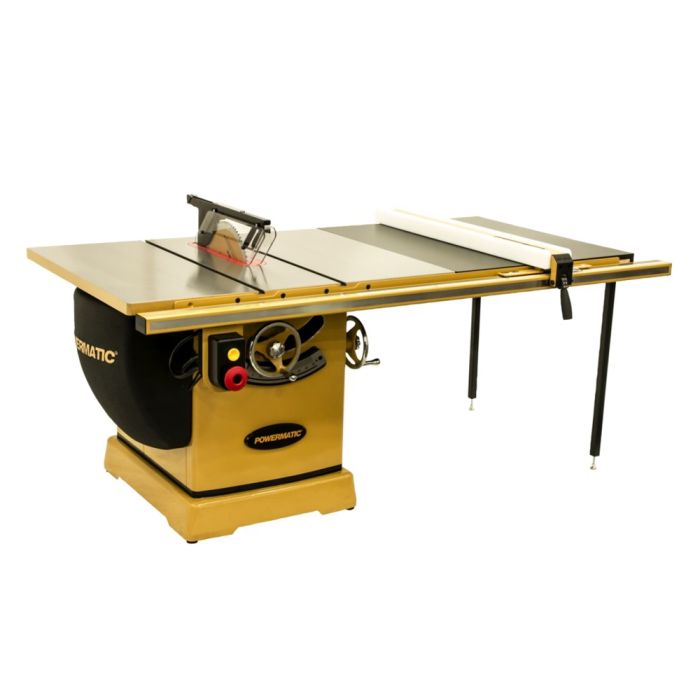

Powermatic PM375350K 3000B 230/460V 7.5HP Table Saw 50" Rip with Accu-Fence

SKU
PM375350K
$6,599.99
Ships direct from manufacturer?

The PM3000B brings heavyweight performance and patented innovations to the 14 inch table saw arena. The riving knife rises and lowers with the blade, substantially reducing kickback risk; and both riving knife and blade guard each have a quick-release, so mounting and removing them is fast and tool-free. A wide-stance trunnion and concave teeth on the trunnion gears promote smooth blade raising/tilting. The Poly-V drive belt system results in quieter, more efficient power transfer with virtually no vibration and less heat build-up. A newly designed push button arbor lock is accessible from above the table top and eliminates the need for dual arbor wrenches. Sloped cabinet floor, dust shroud around the blade, and built-in port for dust extraction.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
Manufacturer Powermatic
Condition New
Features
  • Quick release riving knife lever for hassle free riving knife changes
  • Matching beveled edge between table and extension wings
  • Newly designed AccuFence system for precision cuts
  • Dust collection greatly improved from previous models
  • Poly-V drive belt system delivers efficient, quiet operation
  • Wide stance heavy-duty trunnion for stability and smooth blade positioning
  • Adjustable angle indicators (patent pending) on the blade bevel scale for repeatable bevel cuts
  • Heavy-duty micro adjustable miter gauge with aluminum extruded fence, for good workpiece guidance and fine angle adjustments
  • CSA certified
PDFs
Warranty 5 Year
Voltage (Motor) 230/460 V
Voltage (Prewired) 230 V
Circuit Size 30 amps
Arbor Diameter 1"
Blade Diameter 14"
No-Load Speed 4500 rpm
Dust Collection 600 cfm
Dust Port Outside Diameter 4"
Motor Current 18.4/9.2 amps
Motor Power 7.5 hp
Motor Phase 3
Maximum Cutting Depth (90 degrees) 5-1/8"
Maximum Cutting Depth (45 degrees) 3-1/2"
Maximum Cutting Depth (Front of Saw Blade) 15-1/2"
Maximum Rip of Blade (Right) 50"
Maximum Rip of Blade (Left) 14"
Maximum Diameter of Dado 8"
Maximum Width of Dado 13/16"
Table Type Cast Iron
Table Height (from Floor) 35-1/4"
Table Size 26" x 38"
Table Size (with Extensions) 48" x 38"
Table T-Slot 3/4" x 3/8"
