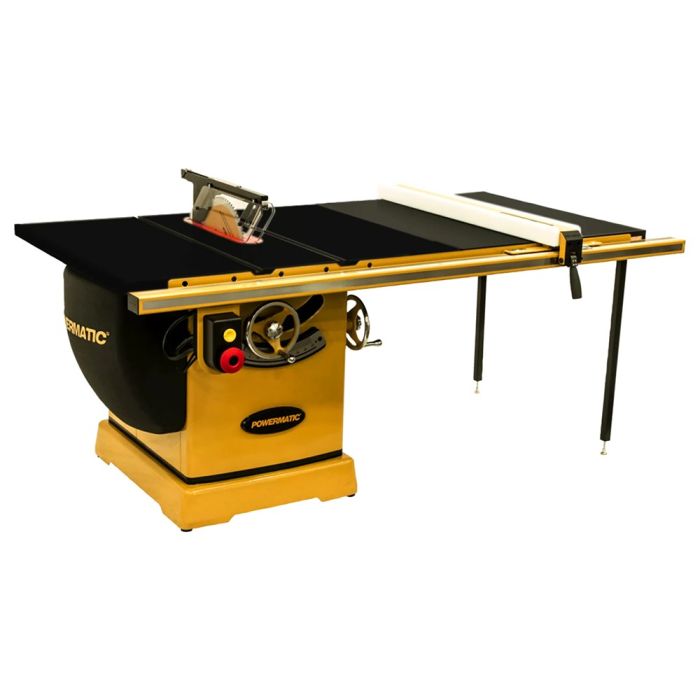

Powermatic PM9-PM375350KT-4 14" 7-1/2 HP ArmorGlide Extension Table Saw

SKU
PM9-PM375350KT-4
$7,599.00
Ships direct from manufacturer?

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the PM3000B brings heavyweight performance and patented innovations to the 14-inch table saw arena. The riving knife rises and lowers with the blade, substantially reducing kickback risk; and both the riving knife and blade guard each have a quick-release, so mounting and removing them is fast and tool-free. A wide-stance trunnion and concave teeth on the trunnion gears promote smooth blade raising/tilting.

The Poly-V drive belt system results in quieter, more efficient power transfer with virtually no vibration and less heat buildup. A redesigned push button arbor lock is accessible from above the table top and eliminates the need for dual arbor wrenches. Additional features include a sloped cabinet floor, dust shroud around the blade, and built-in port for dust extraction.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
Manufacturer Powermatic
Condition New
UPC 019907648284
Features
  • ArmorGlide Technology gives a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives more control
  • Miter gauge is built with robust materials with many positive stops for the most commonly used angles
  • Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
  • Adjustable miter gauge
  • Arbor lock for rapid blade change
  • Heavy-duty micro adjustable miter gauge with aluminum extruded fence, for good workpiece and fine angle adjustments
  • Industrial magnetic switch has an easy-to-access, large ON/OFF switch with a built-in power indicator light and a removable magnetic safety key
  • Industrial-duty Accu-Fence System ensures accurate cuts and increased safety
  • One piece, cast iron trunnion provides the strongest stability of any Powermatic table saw
  • Poly-V drive belt system delivers efficient, quiet operation
TypeTable Saw
Arbor Diameter1"
Arbor Speed (RPM)4500 RPM
Blade Diameter14"
Dust Collection Minimum CFM Required (CFM)600 CFM
Dust Port Outside Diameter4"
Gross Weight600 lbs
Maximum Depth of Cut at 45 Degrees3 1/2"
Maximum Depth of Cut3 1/2" or 5 1/8"
Maximum Diameter of Dado8"
Maximum Rip Left of Blade14"
Maximum Rip Right of Blade50"
Maximum Width of Dado13/16"
Miter Gauge TypeT-Slot with Stops
Motor Amps6.7 A
Motor Power7.5 HP
Motor Voltage460 V
Net Weight467 lbs
Overall Dimensions (L x W x H)84 11/16" x 46 1/2" x 42 7/8"
Recommended Circuit Size (Amps.)30 A
StyleCabinet
Table Height from Floor35 1/4"
Table Size (L x W)26" x 38"
Table TypeCast Iron
Phase3 PH
