Baileigh Industrial BA9-1019843 RD-1600H-VS, Variable Spee Hydraulic Radial Drill Press

SKU
BA9-1019843
$48,729.00
Ships direct from manufacturer ?

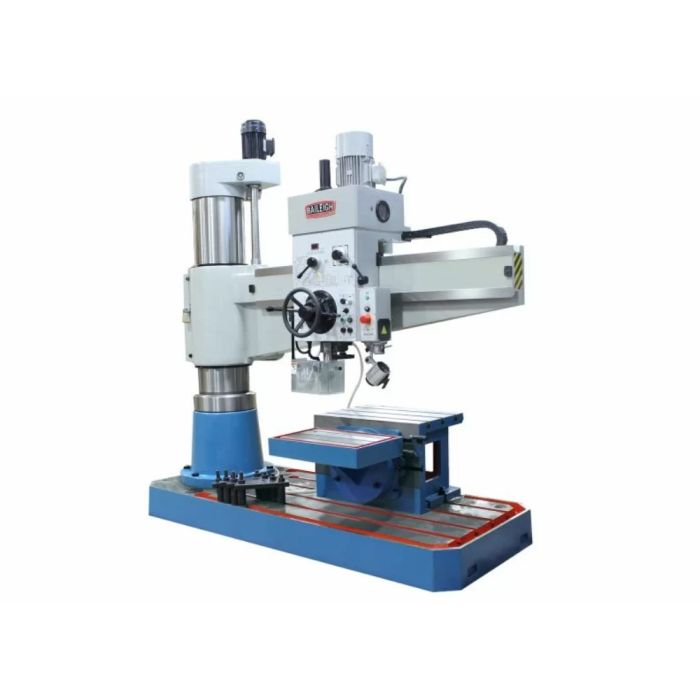

RD-1600H-VS Variable Speed Radial Drill is a step above other conventional radial drills. It is suitable for medium and small parts in drilling, spot facing, counter-boring and taping etc. It is really an idea machine suitable for single work piece machining and batch production in the machining workshop, maintenance workshop and tool production workshop.

For more information on the RD-1600H-VS, please contact a Baileigh representative at 920-654-5815 today

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerBaileigh Industrial
ConditionNew
UPC00731325482874
Features
  • Variable Speed
  • Power down feed
  • MT5 spindle
  • Box shape worktable
  • 220V 3-phase
  • 38 to 2000 rpm
  • Heavy duty, oversized MT5 spindle
  • Power down feed
  • Box shape worktable
  • Inverter driven, variable speed
  • Integrated coolant system with easy to reach switch
  • Hydraulic clamping for column, arm, and spindle box
Horsepower5.25 HP
Warranty1 Year
TypeRadial Drill Press
Distance Spindle to Column (Max.)63"
Distance Spindle to Column (Min.)13-3/4"
Input Power220V 3-phase
Model NumberRD-1600H-VS
Number of Spindle Speeds38 to 2000 RPM (variable)
Range of Spindle Speeds (RPM).0024" to .0394" in/rev
Shipping Dimensions (L x W x H)102.375"
Spindle Taper (In. x TPI)MT5
Tapping Capacity Mild Steel1-3/4" (No.45 Steel) & 2" (HT200 Cast Iron)
Weight (Lbs.)8500 lbs
