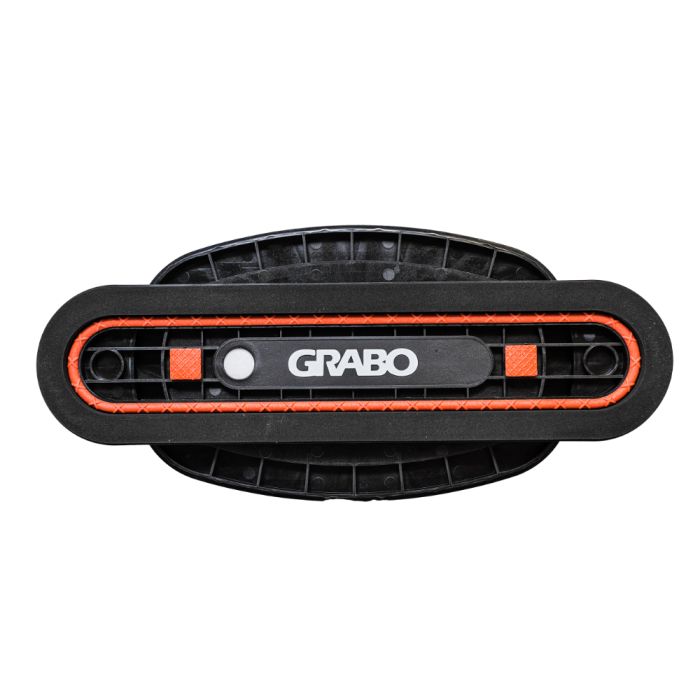

GRABO RK23002, Slender Seal
The Grabo Slender Seal is designed for lifting narrow or curved materials with precision. Its slim Profile allows Grabo Tools to securely grip surfaces such as plank tiles, wooden beams, pipes, and narrow countertops. With a 4-inch wide footprint, it Provides reliable suction and imProved control on surfaces where standard seals may Not fit.
The Grabo Slender Seal expands the capability of your Grabo tool when working with narrow or uniquely shaped materials. Its longer, slimmer Profile allows for secure lifting on surfaces that are difficult to handle with a standard seal.
With a 4-inch wide design, it is ideal for materials such as plank tiles, wooden beams, pipes, and cut-to-size countertops. The specialized shape helps maintain strong suction while giving users better balance and control when lifting smaller or curved surfaces.
Built for durability and Professional use, the Slender Seal is a practical upgrade for contractors and DIY users who need reliable performance when handling narrow materials.
Maximum Capacity lifting is 132 lb (60 kg).
| Manufacturer | GRABO |
|---|---|
| Condition | New |
| Color | Black |
| Type | Slender Seal |
|---|---|
| Dimensions (L x W x H) | 16.2" x 6.9" x 1.24” (411 mm x 175 mm x 31.5 mm) |
| Dimension Of Seal | 371 mm x 65 mm |
| Density | 10.6 Lb/cft (170 kg/m^3) |
| Hardness Shore C | ~10 +/-2 |
| Tearing Pressure | 1800 Psi (126 kg/cm^2) |
| Compression to 25% Size At | 8.5 Psi (6000 kg/m^2) |
| Lifetime (Compressions Till Performance Reduction) | ~900 |
| Material | SBR Rubber Foam Sponge |
| Water Absorption % | % <=5 Shrinkage at 160f (70c) for 24 Hrs, % <=20 Reco Mmended Storage Temperature Room Temperature Red Seal Material Silicon Foam Color Red L X W X H 16.2 X 6.9 X 1.24” (411 X 175 X 31.5 Mm) Density 40.5 Lb/Cft (650 Kg/M^3) Hardness, Shore C 55 +/-5 Water Absorption, % <=4 Reco Mmended Storage Temperature Room Temperature Full Seal Features Combined Seal on Plastic Frame Slender Profile Lifting Capacity: Perpendicular Hold Z Parallel Hold Y Parallel Hold X Maximum Value Safe Value（50%) Maximum Value Safe Value（50%) Maximum Value Safe Value（50%) Glass 225 Lbs (100kg) 110 Lbs (50kg) 110 Lbs (50kg) 55 Lbs (25kg) 220 Lbs (100kg) 110 Lbs (50kg) Metal 145 Lbs (66kg) 72.5 Lbs (33kg) 110 Lbs (50kg) 55 Lbs (25kg) 220 Lbs (100kg) 110 Lbs (50kg) Wood 132 Lbs (60kg) 66 Lbs (30kg) 66 Lbs (30kg) 33 Lbs (15kg) 176 Lbs (80kg) 88 Lbs (40kg) Rough Concrete 105 Lbs (48kg) 52.5 Lbs (24kg) 110 Lbs (50kg) 33 Lbs (15 Kg) 220 Lbs (100kg) 110 Lbs (50kg) |
