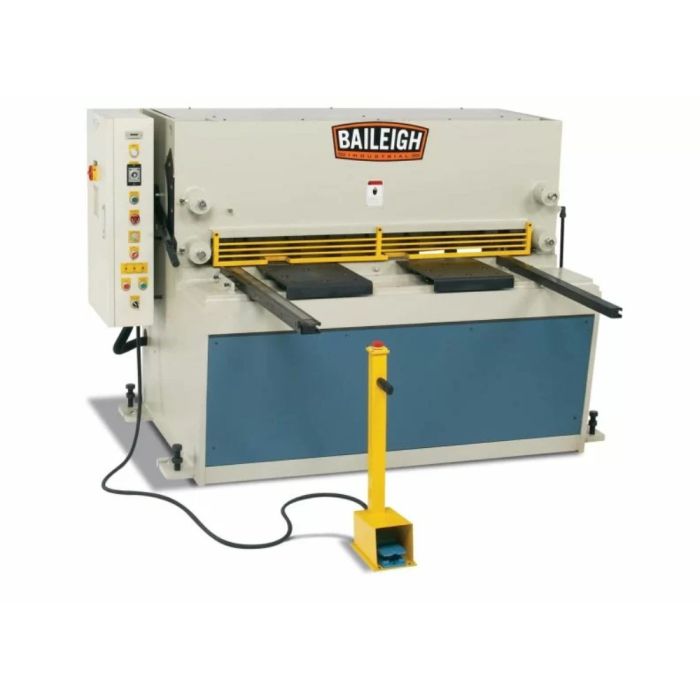

We build this Hydraulic Sheet Metal Shear with only the best components to ensure that it will last for many years. The adjustable blade gap and rake angle improve cut quality and minimize burr.
Also available in a numerically controlled version, the SH-5203-HD-NC.
Covered by a 1-year parts warranty. Includes lifetime technical support by phone from a team with hands-on industrial metalworking experience. Questions? Not sure which is the best sheet metal shear for you? Call 1-920-654-5815 and talk to a knowledgeable Baileigh rep.
WARNING: Proposition 65 Warning for California Residents View Details
15 hp motor runs on 220-volt 3-phase power with a ¼" mild steel maximum capacity and a 52" shearing length
Industrial-grade hydraulic system can take anything you throw at it with a control panel that includes rake angle adjustment, jog/run/stop controls, and production counter
Heavy support arms keep your material square to the blade and fully welded plate steel frame ensures rigidity and prolongs blade life
Easy to operate: just press the foot pedal. Hydraulic hold-downs grab the material to ensure a straight cut, then the blade drops
Switch between 3 modes as needed: Jog mode: Inching the blade down to the material, Single cycle mode: One cut for one pedal push, and Automatic cycling mode: Continuously cutting for production runs
Adjust the blade gap in seconds to prevent crimping or folding, especially when working on thinner materials
Adjustable rake angle can change for your material thickness, giving you cleaner cuts and reducing strain on the hydraulics
It’s simple to set the right rake angle: just hit a button, move the lever, and a light goes on when you reach the correct angle
Comes standard with high carbon chromium blades - 2-sided upper blades and 4-sided lower blades can be flipped and resharpened many times, saving you money
Shadow light stretches the entire length of the web width for proper placement of the beginning of the cut, for those one-off shearing requirements
