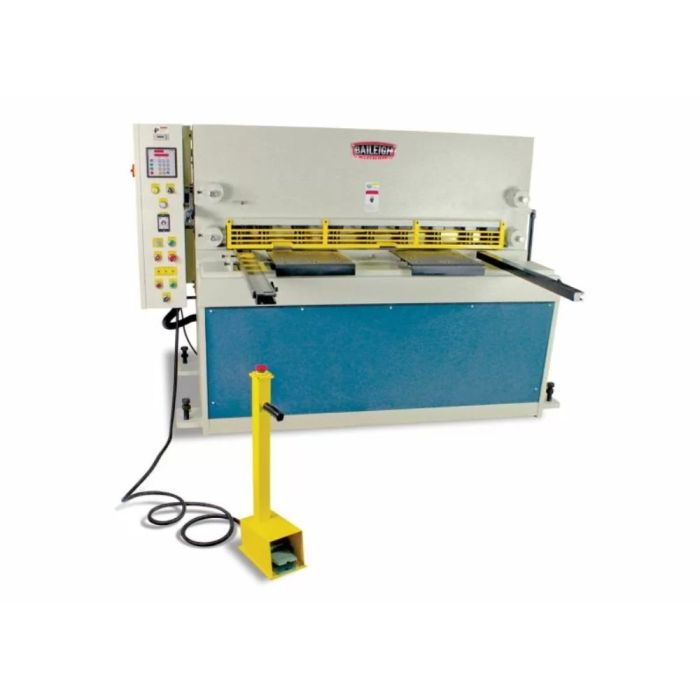

The Baileigh Industrial SH-5203-HD-NC is a heavy-duty Hydraulic Shear that is built for years of heavy cutting production requirements. This Hydraulic Shear can cut 52” wide sheet metal with a thickness up to ¼" thick. The SH-5203-HD-NC Sheet Metal Shearing machine comes standard with an upper blade carriage that rides in a 3-axis bearing housing that runs on a heavy-duty precision ground and hardened rail system for unbeatable accuracy and longevity of blade life.
The Baileigh Industrial SH-5203-HD-NC Heavy Duty Hydraulic Shear is typically in stock for quick turn-around. For further information on our Metal Cutting Shears, please feel free to contact a representative.
WARNING: Proposition 65 Warning for California Residents View Details
Eight hydraulic hold downs providing 3.2 tons of pressure each, ensure the sheet of metal doesn't lift while being sheared to the required length
Shadow light stretches the entire length of the web width for proper placement of the beginning of the cut, for those one-off shearing requirements
Heavy-duty hydraulic shear comes standard with a simple to operate control panel including the rake adjustment, jog/run/stop controls, program pad for the back gauge, and production counter
Shears blade gap can be altered by a simple handle adjustment in seconds when changing material thicknesses
High carbon chromium blades that have several edges, so as the blades wear, they can be flipped several times before re-sharpening is required
Simple remote operator controls pendant house an E-Stop button and foot pedal controls
The framework uses plate steel that is fully welded to increase stability and reduce vibration
Metal Cutting Shear includes front and rear product supports, a roller in feed table, and side guides to easily maneuver the plate steel for the next cut
Programmable quick change back gauge rides on a screw ball rail system that has a positioning encoder for accuracy
