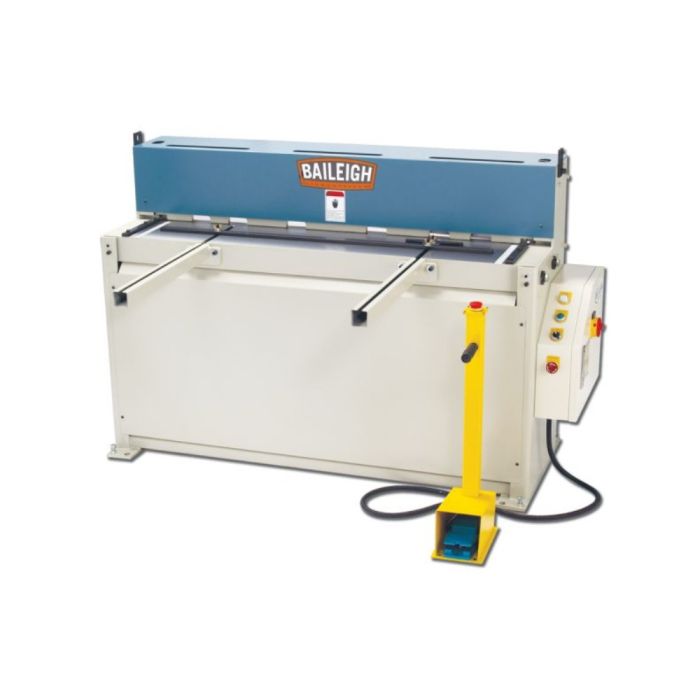

This Hydraulic Shear was one of the machines that got us started and built with the quality reputation of Baileigh. With its welded steel frame, the SH-5210 Sheet Metal Shear makes perfect cuts every time.
Also available in a 52"-long, 14-gauge version and a 60"-long, 10-gauge capacity model.
This 10-gauge Sheet Metal Shear is covered by a 1-year parts warranty. Includes lifetime technical support by phone from a team of reps with hands-on metalworking experience. Questions about this Baileigh Sheet Metal Shear? Not sure which Sheet Metal Shear is right for you? Call 1-920-654-5815 and talk to a Baileigh expert.
WARNING: Proposition 65 Warning for California Residents View Details
52" length with a 10-gauge mild steel maximum capacity and a minimum capacity of 24-gauge mild steel
5 hp motor runs on 220-volt single-phase power with up to 28 strokes per minute
Adjustable 24" back gauge ensures precise repeatability
Front support arms and table guides keep the material square to the blade
3 modes on the operator console: Inch mode: Jog the control and ease the blade down to the material, Single mode: Make one cut cycle per foot pedal push, and Auto mode: Continue cycling as you hold the pedal down
This hydraulic shear comes standard with high carbon chromium blades
Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money
Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life
Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy
