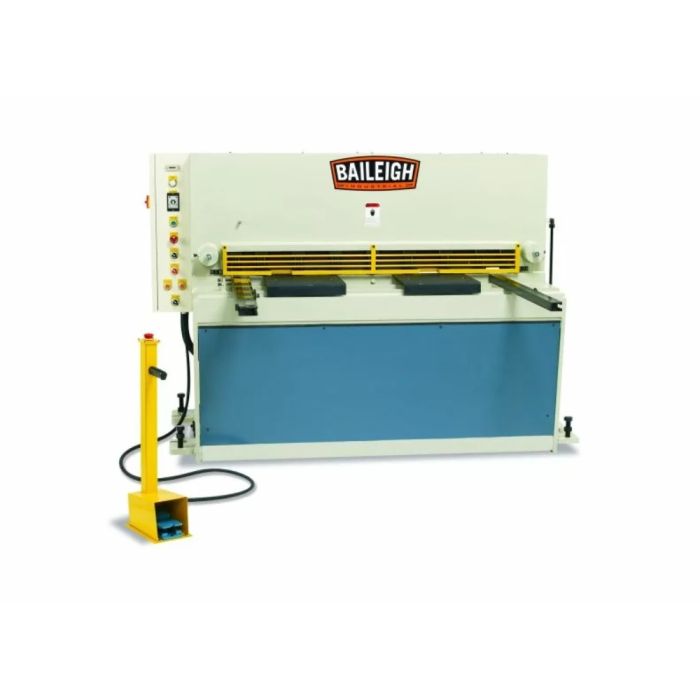

With its welded steel frame, this Hydraulic Sheet Metal Shear offers a long lifespan of use cutting thick materials for high production. The adjustable blade gap and rake angle ensure quality cuts.
Also available in a more economical single-phase version, the SH-5210 Sheet Metal Shear is designed for lighter production.
You can add an optional sheet support system to this model. Please call us for details.
The SH-5210-HD Plate Shear is covered by a 1-year parts warranty. Includes lifetime technical support by phone from a team of reps with hands-on metalworking experience. Questions? Not sure which is the best sheet metal shear for you? Call 1-920-654-5815 and talk to a knowledgeable Baileigh rep.
WARNING: Proposition 65 Warning for California Residents View Details
52" length with a 10-gauge mild steel maximum capacity and a minimum capacity of 24-gauge mild steel
7.5 hp motor runs on 220-volt 3-phase power and generates 35 to 47 strokes per minute for speedy production
Industrial-grade hydraulic system is in the front for easy fluid changes and shearing carriage rides on hardened ways and uses heavy-duty bearings to reduce friction
Manually adjustable 23.62" back gauge ensures precise repeatability while side gauges keep the cut at 90° (if you so choose) without you needing to make a guiding line on the material
Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy while the heavy-duty table with roller bars slides material into the machine more easily
Switch between 3 modes as needed: Jog mode: Inching the blade down to the material, Single cycle mode: One cut for one pedal push, and Automatic cycling mode: Continuously cutting for production runs
Adjustable rake angle dial makes it easy to fit your material thickness to minimize burr and put less strain on hydraulics
Convenient blade gap adjustment lets you eliminate folding and twisting and the SH-5210-HD comes standard with high carbon chromium blades
Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life
Shadow line creates a reference line on the material so you know exactly where the cut will be while the 2-sided upper blades and 4-sided lower blades can be flipped and resharpened as needed, saving money
