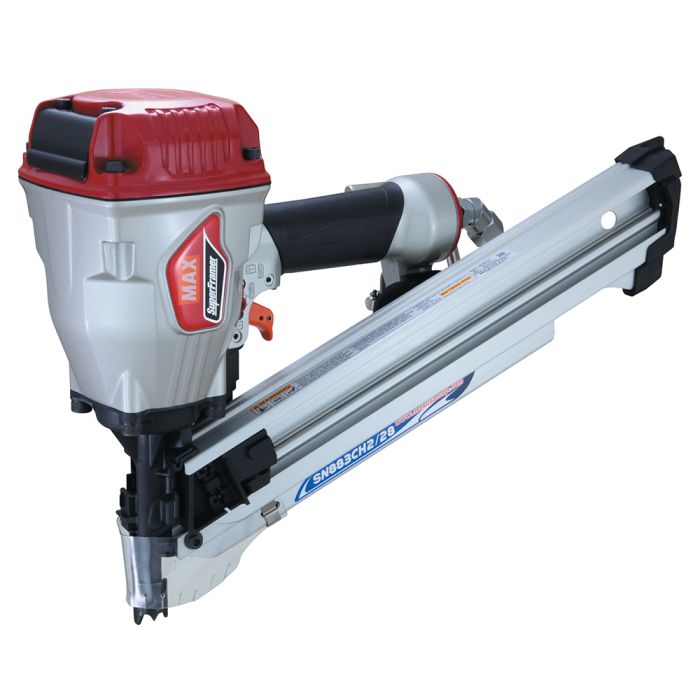

MAX USA SN883CH2/28 28 Deg 3-1/4" Framing Offset/Clipped Head Stick Nailer

SKU

SN883CH2/28

$354.14

In Stock

Notify me when the price drops

Product Description
Features/Specifications
Reviews

Product Description

Designed with a 28 degree magazine, the safety equipped SuperFramer SN883CH2/28 is an ideal choice for a variety of applications such as framing, sheathing, decking, sub flooring and furring. At 11-7/8 inch the SN883RH3 is 30 percent shorter than conventional tools. Hard to reach places and unconventional angles are a thing of the past for carpenters. This stick framing nailer is equipped with a swivel fitting to alleviate the tangling of the air hose from any angle and a rafter hook for easy hanging of the tool when it's not being used. MAX is committed to manufacturing reliable tools that have been designed to deliver enhanced performance while making sure that users can carry out safe operations.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	MAX USA
Condition	New
Features	Self-Cleaning Filter For Reliable Operations: The patented, self-cleaning maintenance free end cap filter captures foreign substances before they can enter the tool and automatically ejects them when the air hose is disconnected Safe And Easy Toe Nailing: Designed with pointy teeth on the contact arm allows users to get a firm grip when toe-nailing, and also avoiding any rapid jerks or slipping during operation Avoid Potential Tripping Hazards: A unique tangle-free swivel fitting allows users to freely conduct work while holding the tool from any angle, without having to worry about tripping over a tangled air hose Dependable Rafter Hook: A heavy-duty rafter hook gives carpenters the convenience of hanging tool on rafters as they move around the jobsite Compact Framer Fits In Between Studs: At 11-7/8 inch the SN883CH2/28 is 30 percent shorter than conventional tools. This design feature allows the user to easily fit the tool in between studs Consistently and Accurately Shoots Nails: The depth adjustment dial allows operators to effortlessly drive nails into hard materials, and also control depth of drive when fastening soft materials, for a consistently polished finish Easy Switchable Trigger (Ansi Compliant): The tool comes from the factory with a sequential trigger installed and also includes a contact fire trigger in the carton box. No special tool is required to switch the trigger
PDFs	SN883CH2_28_InstructionManual SN883CH2_28_Service_Part_List
Application	Framing, Sheathing, Decking, Subflooring, Furring
Fastener Type	Framing Offset/Clipped Head Stick Nailer
Nailgun Angle	28 Deg
Nail Length	3 1/4"

Minimum Operation Pressure	70 PSI
Maximum Operation Pressure	120 PSI
Air Inlet Size	3/8"
Magazine Capacity	84
Depth Control	Yes
Weight	7.8 lbs
Trigger Type	Selective Action Trigger (Sequential/ Rapid)
Air Consumption (Ft3/Cycle)	0.077'
Accessories	Rapid fire trigger, Safety glasses
Collation Type	Wire, Paper
Strip Or Coil	Strip
Compatible Fastener Types	Offset head/clipped head Offset head/clipped head stick nails
Minimum Fastener Size	2"
Minimum Nail Diameter	0.113"
Maximum Nail Diameter	0.131"
Length	16-7/8"
Width	4 3/4"
Height	12-1/4"
