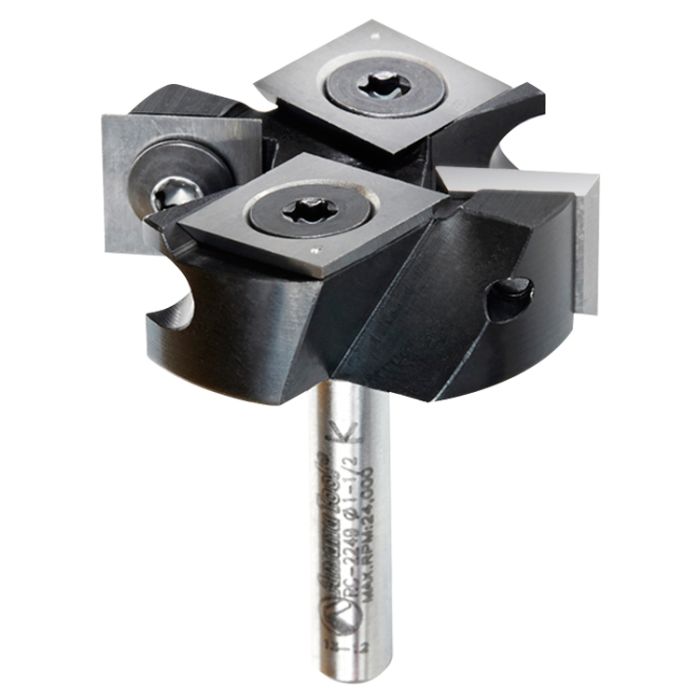

Amana Tool RC-2249 1-1/2" Insert Carbide Mini Router Bit

SKU

RC-2249

$195.98

Ships direct from manufacturer

Notify me when the price drops

Product Description
Features/Specifications
Reviews

Product Description

Mini insert carbide spoilboard surfacing and rabbeting with scorer, great for cutting tight corners. Features unique 2+2 insert knife design that contains two cutting flutes and two up-shear scorers, which provide a smoother finish at the bottom of the cut than traditional two-knife style router bits. Great for surface planning.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Amana Tool Corp.
Condition	New
UPC	73868522249
Features	Resurfacing spoilboards using CNC 2+2 spoilboards contain two bottom scorers for better performance, finer surface finish and better clearance for 90 degree corners Planning large glued up panels using CNC Surfacing and finishing wood using timber slab machines Rabbeting or slotting 2+2 design 4-sided solid carbide insert knives Exclusive carbide grade for highest quality of cut Maximum cutting efficiency Faster material removal process These industrial router bits feature solid carbide insert knives with four cutting edges that allow users to rotate the knife when one side becomes dull providing the highest-quality finish available on woodworking tools Recommendations: For surfacing solid woods it is recommended to remove both bottom scorers
Includes	HMA-12 and HCK-70 Replacement Knife 67155 and 67115 Replacement Screw
Application	MDF, Fiberboard, HDF/LDF, Balsa Core, Epoxy (Epoxy Resins), High Density Urethane (HDU Board), Plastic/Acrylic, Plywood/Chipboard, Hardwood/Softwood, Ultra-High-Molecular-Weight Polyethylene (UHMWPE), For optimal results and maximum insert life, replace i
Type	Router Bit
Cutting Diameter(D)	1 1/2"
Length(L)	1 13/16"
Material	Solid Carbide
Shank	1/4"

Diameter(D)	1-1/2"
Cutter Height(B)	1/2"
Shank(d)	1/4"
Overall Length(L)	1-13/16"
Max. RPM	24,000 RPM
Replacement Knives	HMA-12, HCK-70
Style	Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler & Surface Planer
Flutes	4
