The Domino connector revolution: Produce perfect timber connections quicker and more easily than ever before. With the new corner and flat connectors for the Domino XL DF 700 joining machine, we have made further revolutionary developments to the Domino idea. These connectors provide frame, rack and board connections that will impress we with extreme precision and stability as well as maximum flexibility and unique efficiency.
WARNING: Proposition 65 Warning for California Residents View Details

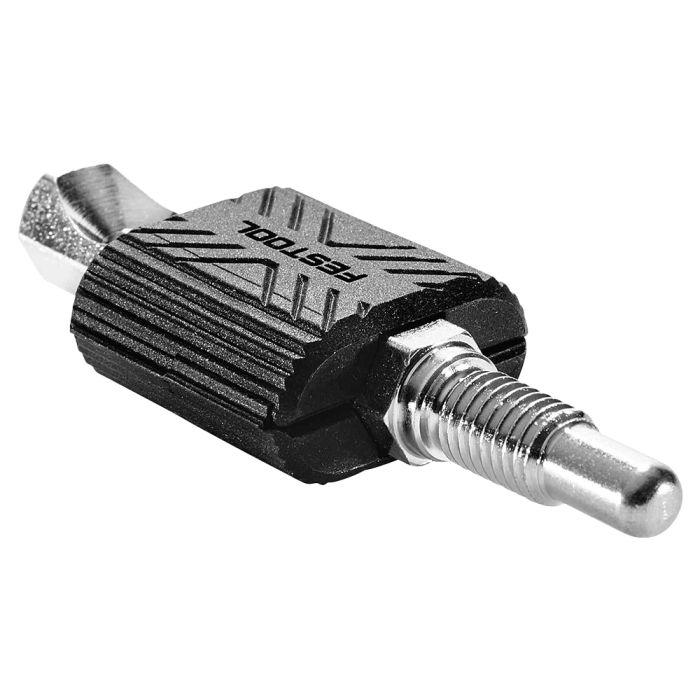

The SV-AB D14 anchor bolt, the SV-SA D14 split anchor and the SV-QA D14 cross anchor combine to form the corner connector
All parts are available either in the DOMINO SV-SYS D14 DOMINOVerb connection systainer, as an EV/32 set or individually as individual parts
The corner and flat connector system for the DOMINO XL DF 700 joining machine enables stable connections that can be separated again at a material thickness of 30 mm or higher
For frame and rack joints (corner connectors) and board connections (flat connectors)
Extremely quick thanks to simple milling using machine stops or pencil markings. No template or other accessories required
Extremely stable with dowel and clamping element for strong connections
High pulling and tightening distance
Extremely high pull-out and load forces
Extremely flexible and can be detached again quickly if necessary
With cover caps in three colours for a high-quality corner connection appearance
For processing using the DOMINO XL DF 700 joining machine
Corner connectors for frame and rack joints at material thicknesses of 30 mm or higher
In conjunction with SV-SA D14 split anchors and SV-QA D14 cross anchors for creating corner connections
Extremely Stable: Dowel and clamping element for a strong connection. Extremely high pull-out and load forces
Extremely Flexible : Connection can be detached again quickly if necessary. For frame and rack joints (corner connectors) and board connections (flat connectors) at material thicknesses of 30 mm or higher
The New Corner Connectors : Not only extremely quick and extremely stable, but also boasting a high-quality appearance : the only visible part is the cover cap, which is clipped over the oval milled holes that are typical to DOMINO
For stable furniture designs that can be separated again such as beds, tables, etc
The SV-SA D14 split anchor expands within the wood when it is screwed in
As an Option for Covering DOMINO Milled Holes : Cover caps in silver, dark brown or light brown (SV-AK D14 slr, SV-AK D14 brn1 and SV-AK D14 brn2)
Modular Components: The SV-AB D14 anchor bolt, the SV-SA D14 split anchor and the SV-QA D14 cross anchor combine to form the corner connector. All parts are available either in the DOMINO SV-SYS D14 DOMINOVerb connection Systainer, as an EV/32 set or individually as individual parts
Stable and Detachable: The corner and flat connector system for the DOMINO XL DF 700 joining machine enables stable connections that can be separated again at a material thickness of 30 mm or higher
Connect Quickly, and Release if Necessary: For frame and rack joints (corner connectors) and board connections (flat connectors) that will impress you with extreme precision and stability as well as maximum flexibility and unique efficiency
Includes
64 x Dowel Half-Shells
Video
Package Size
32
Suitable for Use With
DF 700
Type
Anchor Bolt
Diameter
14 mm
Application
For Stable Furniture Designs that can be Separated Again Such as Beds, Tables, etc., The SV-SA D14 Split Anchor Expands within the Wood When it is Screwed in, As an Option for Covering DOMINO Milled Holes: Cover Caps in Silver, Dark Brown or Light Brown (SV-AK D14 slr, SV-AK D14 brn1 and SV-AK D14 brn2)
