The Domino connector revolution: Produce perfect timber connections quicker and more easily than ever before. With the new corner and flat connectors for the Domino XL DF 700 joining machine, we have made further revolutionary developments to the Domino idea. These connectors provide frame, rack and board connections that will impress we with extreme precision and stability as well as maximum flexibility and unique efficiency.
WARNING: Proposition 65 Warning for California Residents View Details

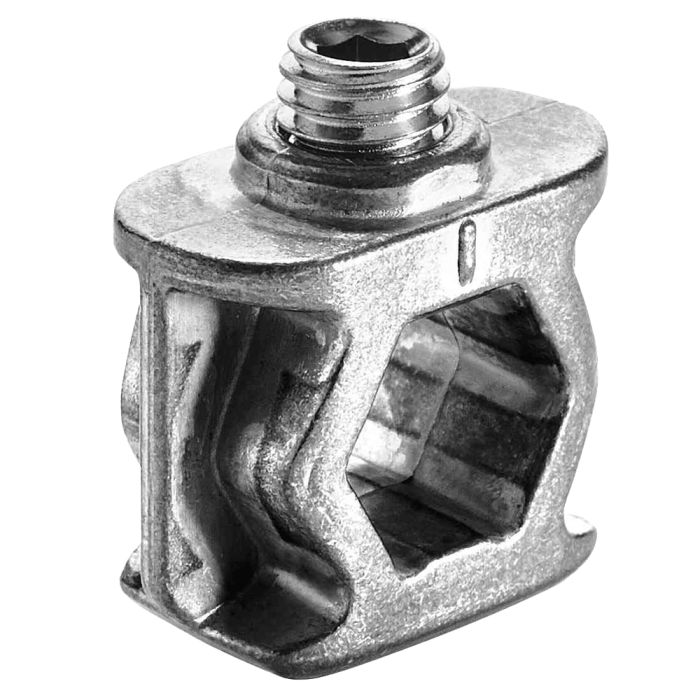

The SV-QA D14 cross anchor combines with the SV-AB D14 anchor bolt and the SV-SA D14 split anchor to form the corner connector, or combines with the SV-DB D14 double-headed bolt and optionally with the SV-V D14 widener to form the flat connector. All parts are available either in the DOMINO SV-SYS D14 DOMINOVerb connection systainer, as an EV/32 set, as an FV/16 set or individually as individual parts
The corner and flat connector system for the DOMINO XL DF 700 joining machine enables stable connections that can be separated again at a material thickness of 30 mm or higher
For frame and rack joints (corner connectors) and board connections (flat connectors) that will impress we with extreme precision and stability as well as maximum flexibility and unique efficiency
Extremely quick thanks to simple milling using machine stops or pencil markings
No template or other accessories required
Extremely stable with dowel and clamping element for strong connections
High pulling and tightening distance
Extremely high pull-out and load forces
Extremely flexible and can be detached again quickly if necessary
With cover caps in three colours for a high-quality corner connection appearance
For processing using the DOMINO XL DF 700 joining machine
Acts as a counter bearing and tightening element for anchor bolts or double-headed bolts
With soft or porous material such as chipboard, the use of the cross anchor expander SV-V D14 is recommended (for material thickness 35 mm and greater – stops the cross anchor being pulled into the material)
In conjunction with SV-SA D14 split anchors and SV-AB D14 anchor bolts for creating corner connections
In conjunction with SV-DB D14 double-headed bolts for creating flat connections
Extremely Stable: Dowel and clamping element for a strong connection. Extremely high pull-out and load forces
Extremely Flexible : Connection can be detached again quickly if necessary. For frame and rack joints (corner connectors) and board connections (flat connectors) at material thicknesses of 30 mm or higher
The New Corner and Flat Connectors : Not only extremely quick and extremely stable, but also boasting a high-quality appearance : the only visible part is the cover cap, which is clipped over the oval milled holes that are typical to domino. Flat connector: large clamping distance for secure locking and a strong, stable connection
Modular Components: The SV-AB D14 anchor bolt, the SV-SA D14 split anchor and the SV-QA D14 cross anchor combine to form the corner connector. All parts are available either in the DOMINO SV-SYS D14 DOMINOVerb connection Systainer, as an EV/32 set or individually as individual parts
Stable and Detachable: The corner and flat connector system for the DOMINO XL DF 700 joining machine enables stable connections that can be separated again at a material thickness of 30 mm or higher
Connect Quickly, and Release if Necessary: For frame and rack joints (corner connectors) and board connections (flat connectors) that will impress you with extreme precision and stability as well as maximum flexibility and unique efficiency
Includes
32 x Set Screws
Video
Package Size
32
Suitable for Use With
DF 700
Type
Cross Anchor
Diameter
14 mm
Application
For Furniture Designs that can be Dismantled Such as Beds, Tables, etc, For Creating Detachable Flat Connections for Furniture Manufacturing Such as Kitchen Worktops, Benches, etc.
