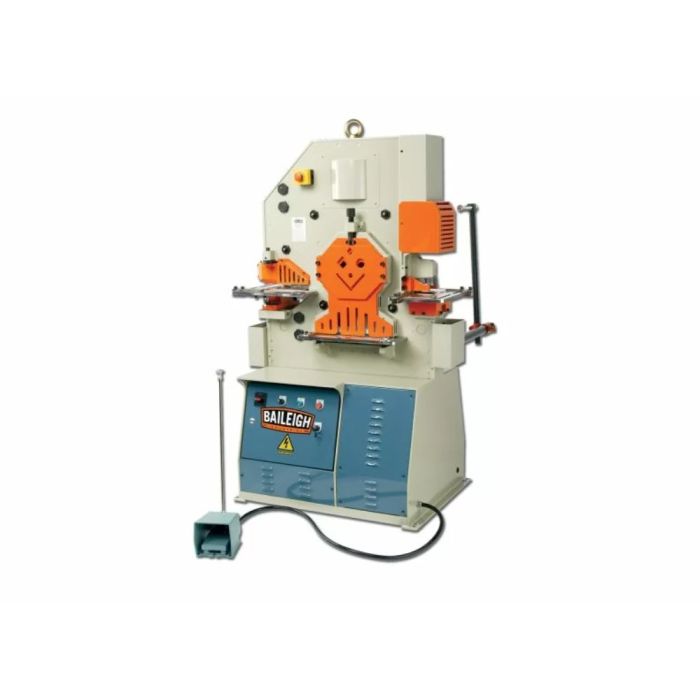

Baileigh Industrial BA9-1007812 SW-623, 220V 3Ph 62 Ton 5 Station Hydraulic Ironworker

SKU

BA9-1007812

$26,839.00

Ships direct from manufacturer

Notify me when the price drops

Product Description
Features/Specifications
Reviews

Product Description

This rugged hydraulic ironworker machine amps up the efficient, feature-loaded design of our SW-50 models with additional capacity for tougher applications. If your shop takes on punching, shearing, and notching jobs on a regular basis, let the SW-623 prove how hardworking a hydraulic ironworker can be over decades of use.

Why choose the SW-623 over similar machines?

Vertical hydraulic movement minimizes deformation and produces more exact cuts than competing ironworkers that use pivot mechanisms.

The ironworker and its tooling will both last longer because the vertical direction of the hydraulic pressure reduces stress on the machine.

Exceptionally fast punch tooling change system takes time off of production runs.

We automatically include extras that other companies consider upgrades, such as a die sets and wastebaskets for scrap.

This unit’s small footprint will save space at your shop.

You can count on unlimited remote assistance and troubleshooting. Give us a call anytime. We can also offer advice on getting the most out of the SW-623 on projects.

WARNING: Proposition 65 Warning for California Residents View Details

Features/Specifications

More Information
Manufacturer	Baileigh Industrial
Condition	New
Features	220V 3-phase power. 62 tons of force at 5 stations. Includes 7 sets of punches and dies. Runs on 220-volt 3-phase power. Delivers a robust 62 tons of pressure at all 5 integrated stations: punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching. Pure vertical hydraulic movement at each station produces exceptionally clean cuts, notches, and holes in seconds. You can set the back-gauge and material stops to save time and ensure repeatability for production runs. Large 2-piece worktables, equipped with handy meter guides, pull out from the machine to fit oversized or awkwardly shaped materials. Downward and upward adjustable stroke controls minimize unnecessary machine motion, decreasing energy usage as well as wear and tear. Knurled handle located at the top of the notching station lets you adjust the material hold-down to deliver crisp shears and punched holes. Our patented swing-away material stripper lets you change tooling in seconds. Specify tooling alignment with a turn of the jog dial for increased safety. Comes standard with 7 punch and die sets, ready to handle a variety of materials and profiles.
Horsepower	5 HP
Warranty	1 Year

Type	Hydraulic Ironworker
Blade Length	14.125"
Flat Bar Shear Max Capacity	13.50" x .5"
Flat Bar Shear Work Height	31.5"
Input Power	220V / 3-phase
Model Number	SW-623
Punch Max Capacity	1.125" x 0.625"
Rating (Tons)	62 Tons
Shipping Dimensions (L x W x H)	60" x 48" x 76"
Stroke Length	2"
Throat Depth	8"
Weight (Lbs.)	2465 lbs
Work Height	39.5"
