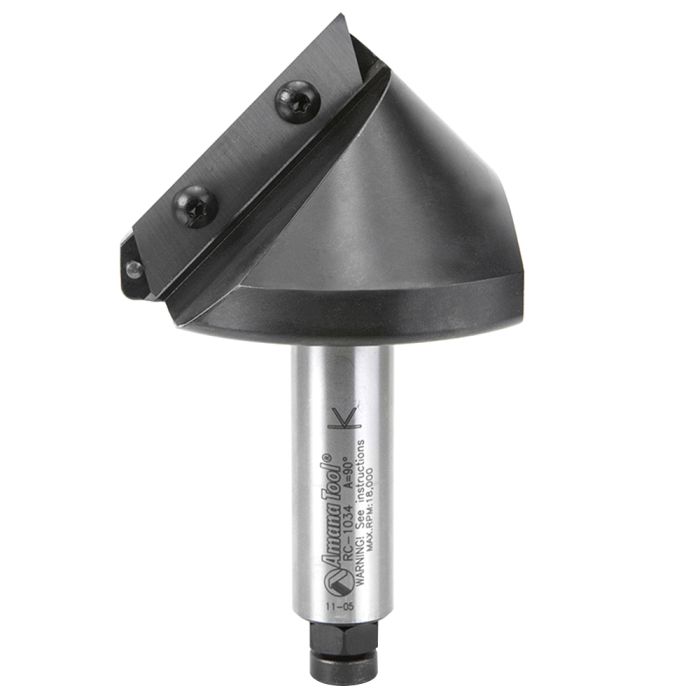

Amana Tool RC-1034 3" Carbide Tipped CNC Insert V-Groove Router Bit Ships direct from manufacturer
The innovative CNC tool design uses the highest grade carbide insert knife which allows you to get two uses out of each insert. Once the knife shows signs of wear you can rotate the insert for a brand new cutting edge. These industrial V-Groove insert router bits were especially designed for applications including: Miter folds - "create the perfect joint", Signmaking and lettering.
WARNING: Proposition 65 Warning for California Residents
View Details More Information Manufacturer Amana Tool Corp. Condition New UPC 73868500010 Features
Long lasting insert knives provide superior smooth quality cuts every time
Quick and precise replacements of dull knives
Due to insert accuracy tool life is extended
Insert tooling allows for harder grades of carbide
Special carbide grades for special applications
Cost effective solution compared to replacing brazed router bits
Secure locking screw system ensures maximum safety and maintains cutting accuracy
CNC router requires quality hold downs to ensure the least possibility of material shifting during operation
Type Router Bit Angle(a°) 90 Deg Angle(a°1) 45 Deg Diameter(D) 3" Flutes 1 Material Carbide Tip Max. RPM 18,000 RPM # of knives 1 Shank(d) 3/4"
Cutting Height (B) 1-1/2" Overall Length(L) 4-3/8" Length(L1) 2-23/64" Cutting Edges 2 Cutting Height (B1) 2-1/8" Application Aluminum, Brass, Bronze, Copper, Gold, Silver & Carbon Fiber, (Engraving Only), Acrylic/Plastic, Composites, Composite Decking, Epoxy (Epoxy Resins), Foam, High Density Polyethylene (HDPE), Laminate, Melamine, MDF/HDF, PVC, Sign Board, Solid Surface, Veneered Plywood, Wood, Xanita Board*, 20lbs High Density Urethane, *When working with Xanita LightBoard panel (X-board X-board plus) we recommend using MDF knives for better results. Style CNC Insert V-Groove
