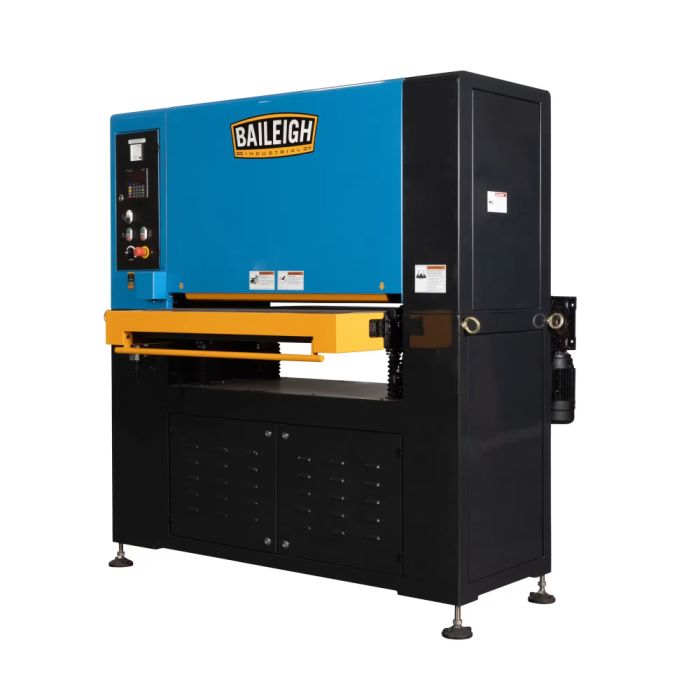

Baileigh Industrial BA1-11226, WBS-37H 460V 3PH 37" x 60" Wide Belt Sander
The Baileigh WBS-37H is the 460V/3-phase version of Baileigh’s 37" x 60" wide belt sander, built for fabrication, precision machining, and MRO shops running higher-voltage service.
Its 10 HP main motor and 1720 RPM belt drive produce up to 2,700 FPM of abrasive belt speed, and the variable 2–26 FPM conveyor handles material from 1/32" to 6" thick and up to 37" wide.
Auto sanding height adjustment, a digital readout, and 10 programmable height presets simplify repeat setups, while auto belt tracking keeps the abrasive centered to extend belt life. UL 987-certified door interlocks, an E-stop, and a quick-stop abrasive belt e-brake protect operators, and the machine carries a 1-year parts warranty plus Baileigh Lifetime Technical Support.
MRO.
Typical work: Removing corrosion and weld spatter, finishing refurbished parts on 460V equipment.
What they need: Needs durability, reliability, low setup time, and quick availability.
Industries: Marine, Oil & Gas, Power Generation, Rail.
Fabrication.
Typical work: Removing slag, radiusing edges, cleaning oxide, prepping for paint or coating.
What they need: Needs throughput, labor reduction, and the ability to run mixed materials.
Industries: Construction, Agriculture, Appliance Mfg, HVAC.
Precision Machining.
Typical work: Removing burrs after machining, applying a consistent surface finish, prepping for coating.
What they need: Needs accurate dimensional control and a repeatable finish.
Industries: Aerospace, Medical Devices, Automotive, Electronics, Defense.
Common Applications.
Precision grinding: removing material to meet tight tolerances ahead of painting or coating.
Heavy slag removal: producing a uniform, rounded edge on flame- or plasma-cut parts.
Finishing: polishing sheet metal or workpieces to a durable surface prior to assembly.
Deburring: removing burrs from parts cut on plasma tables, laser tables, waterjets, and similar equipment.
Works with: Mild Steel, Stainless Steel, Non-Ferrous Metals, Plastics.
Warranty & Support: 1-year parts warranty plus Baileigh Lifetime Technical Support.
| Manufacturer | Baileigh Industrial |
|---|---|
| Condition | New |
| UPC | 019907003182 |
| Features |
|
| Warranty | 1 Year |
| Type | Belt Sander |
|---|---|
| Abrasive Type | Belt |
| Assembled Dimensions | 65.9" x 52.4" x 73.8" |
| Belt Size | 37" x 60" |
| Belt Speed | 1720 FPM |
| Conveyor Gear Box Ratio | 1/100 |
| Conveyor Motor (HP) | 1/4 hp |
| Conveyor Speed | 2 - 16 FPM Variable Speed |
| Dust Port Outside Diameter | 5" |
| Horse Power | 10 HP |
| Infeed Table Length | 19.3" |
| Maximum Material Width | 37" |
| Minimum Material Length | 8" |
| Minimum Material Thickness | 1/32" |
| Model Number | WBS-37 |
| Motor Amps | 25 |
| Motor HP | 10 HP |
| Motor Phase | Three |
| Motor Voltage | 460V |
| Number of Belt Speeds | 1 |
| Prop 65 | Cancer and Reproductive Harm |
| Weight | 1587 lbs |
