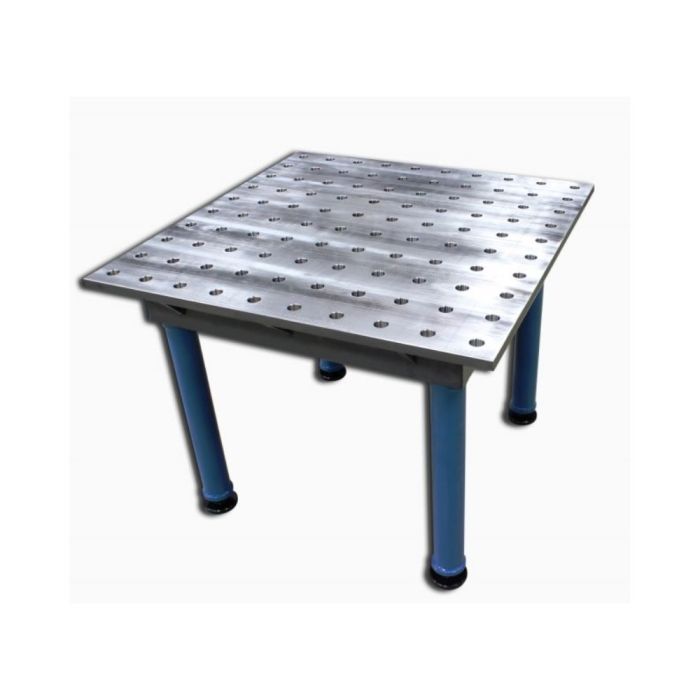

Baileigh Industrial BA9-1010424 WJT-3939, 39" x 39" 2D Steel Welding Jig Table

SKU
BA9-1010424
$5,499.00
Ships direct from manufacturer?

The WJT-3939 Welding Jig Table is perfect for those small shops looking for a good economical fixture mounting system. It features one solid mounting surface that has a flatness of +/- .0025" and a Brinell hardness rating of between 140 and 160.

The best thing about the WJT-3939 metal welding table is that it accepts all of the same fixtures that the Baileigh heavy duty tables use, so when the time is right and the shop grows, you can step right up without having the large expense of swapping out fixtures.

Call us at 1-920-654-5815 with any questions you have about the WJT-3939 Welding Jig Table for sale.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerBaileigh Industrial
ConditionNew
UPC19907011330
Features
  • 2D Steel Welding Table
  • 39" x 39"
  • with Integrated Legs
  • 39” x 39” Metal Welding Table
  • Made from Q345 Steel
  • Brinell Hardness 140~160
  • Single Mounting Surface
  • Expandable
  • 2-ton weight capacity
  • Industry Standard 28mm Mounting holes
  • 100mm hole spacing
  • Etched Position Marks
  • Includes table oiler, brush, and cleaning stone
TypeWelding Jig Table
Model NumberWJT-3939
Mounting Hole Diameter28 mm
Mounting Hole Spacing100 mm
Number of Mounting Points1
Table Flatness+/- 0.0025"
Table Hardness18-25HRC
Table Height33.5"
Table MaterialQ345 steel (yield value 345MPa)
Weight500 lbs
