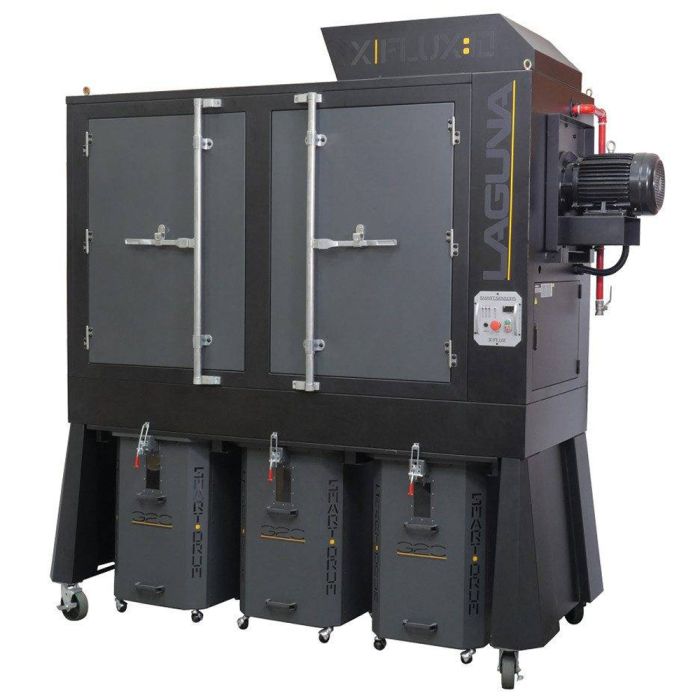

Laguna MDCXF102203 X|Flux 220V Industrial Dust Collector, 10HP/3Ph
Ships direct from manufacturer
Canister Cleaning: Timed auto clean 2 x 10 seconds per work hour.
WARNING: Proposition 65 Warning for California Residents
View Details
More Information
Manufacturer |
Laguna |
Condition |
New |
Horsepower |
10 HP |
Motor Phase |
3 Ph |
Voltage |
220 V |
Battery Capacity |
28 amps |
Recommended Breaker |
50 amps |
Hertz |
60 hz |
No-Load Speed |
3450 rpm |
Main Motor Switch |
Radio Frequency |
Control Panel Type |
Anodized Aluminum |
Hand Held Remote Control |
High Frequency |
LED Warning Light Empty Drum |
Yes |
Auto Clean Timer |
Yes |
Shop Setting |
4700 cfm |
Inlet |
8070 cfm |
Maximum Static Pressure |
11" |
Impeller/Fan Size |
15.5" |
Impeller Material |
Steel |
Impeller Type |
Radial Fin |
Balancing of Fan |
ISO 1940 |
Inlet Diameter |
12" |
Drum Capacity |
54 gal x 3 |
Drum Collection Bag (Diameter x L) |
29" x 51" |
Canister Filter Type |
White 1 Micron |
Filtration Efficiency |
0.2-2 micron at 99.97% |
MERV Rating |
12 |
Canister Diameter |
19.69" |
Canister Length |
35.43" |
Filter Surface Area |
24.3m² , 261.6 ft² |
Canister Filter Lower |
Plastic bag 29" x 24" L |
Wheels Size |
6” |
Noise Level |
80 dB(A) |
Length |
104” |
Height |
106” |
Width |
49” |
weight |
1653 lbs. |
|
|
