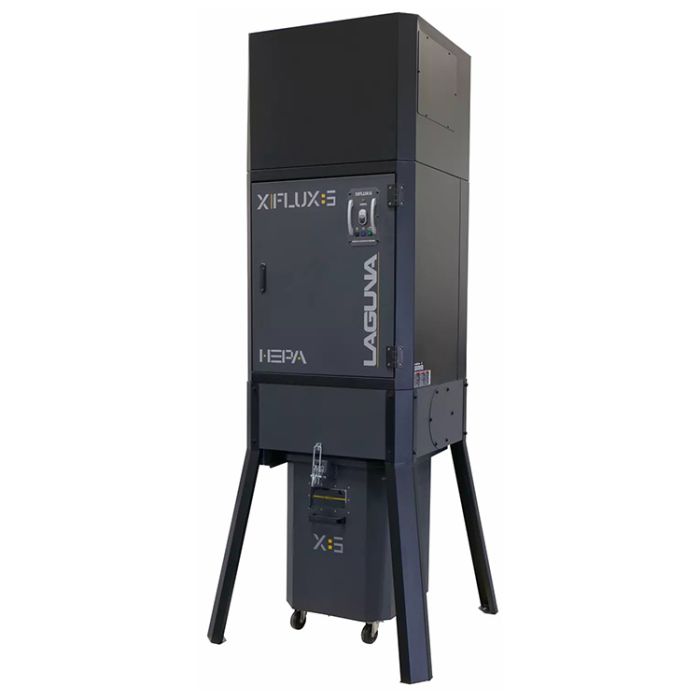

Laguna MDCXF52201 X|Flux 5 Dust Collector

SKU
MDCXF52201
$5,499.00
Ships direct from manufacturer?

The all-new X|Flux 5 boasts a powerful 5hp motor and impressive 1823 CFM. Auto-cleaning of the HEPA filter is accomplished by double-paddles that sweep the filter every 3 minutes of system use in a clockwise and counterclockwise action. Remote and LED drum light are standard. The X|Flux 5 is a full-size stationary, single-stage dust collection unit with convenient 39 gallon drum on locking castors.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerLaguna
ConditionNew
Features
  • Designed for the Demanding Hobbyist or Small Pro Shop: Powerful, compact & low noise level makes the X|flux:5 an exciting new member of the laguna clean air lineup
  • Cartridge Filter: HEPA 19.7″ x 19.7″ (50 x 50 cm) x 1pc; (0.3 – 0.4 Micron at 99.7% Efficiency). The non-stick PTFE membrane has some disintegration after 200,000 cycles at the area where the cleaning paddles/arms touch the filter media. This does not largely affect the filtration efficiency. The HEPA filter media used on Laguna Cyclones are independently tested by an accredited 3rd party (TTRI). Designed with wide-spaced pleating to maintain optimum performance throughout filter lifespan
Video

Horsepower5 HP
Motor Phase1 Ph
Speed (RPM)3,450 RPM
CFM of Air Flow1832 CFM
Voltage220V
Frequency Hz60 Hz
Amperage18.5 Amps
Air Volume Cubic Feet Per Minute1,823 CFM
Max Static Pressure12"
Fan Size14.5"
Inlet8"
Decibel Reading69 dBA (at 9.8')
Remote ControlHigh Frequency
Collection Capacity39 Gallon Octagon Drum
Assembled Length36"
Assembled Width38"
Assembled Height91"
Weight456 lbs
Filtering Area32.3 sq/ft
TypeDust Collector
