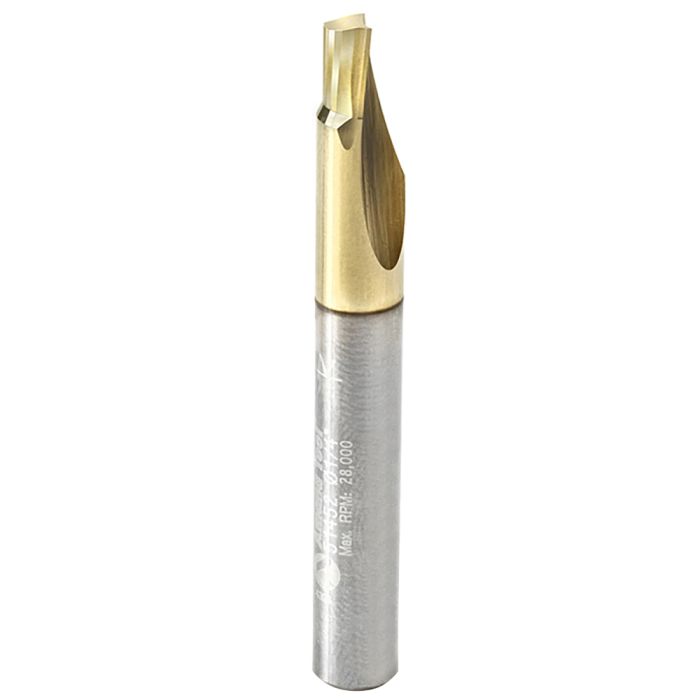

Amana Tool 51452 1/4" Solid Carbide Up-Cut ZrN Coated Router Bit
SKU
51452
$68.01
Ships direct from manufacturer ?
Solid carbide single flute aluminum router bits, Zirconium Nitride (ZrN) coated, are especially designed to cut soft grades of aluminum sheet, (3003 grade) to achieve a satisfactory finished edge.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868551452 |
| Features |
|
| Application | Acrylonitrile-Butadiene-Styrene (ABS), Aluminum sheet (3003 grade), Aluminum 5052, Brass, Bronze, Copper, Fomex with Aluminum Face, Gold, Non-Ferrous Metals, Polycarbonate (Lexan), Silver, Recommendation: Use the slowest suggested feed rates and the short |
| Type | Router Bit |
| Ball Bearing | No |
| Cutter Height(B) | 1/4" |
| Diameter(D) | 1/4" |
| Feed Rate | 105 IPM |
| Flutes | 1 |
| Material | Solid Carbide |
| Max. RPM | 28,000 RPM |
| Overall Length(L) | 2" |
| Recommended RPM | 14,000 RPM |
| Shank(d) | 1/4" |
| Tool No. | 51452 |
| Diameter(D) | 1/4" |
|---|---|
| Cutter Height(B) | 1/4" |
| Shank(d) | 1/4" |
| Overall Length(L) | 2" |
| Flutes | 1 |
| Direction | Up-Cut |
| Style | Spiral |
| Recommended RPM | 14,000 RPM |
| Max. RPM | 28,000 RPM |
| Coated | ZrN Coated |
