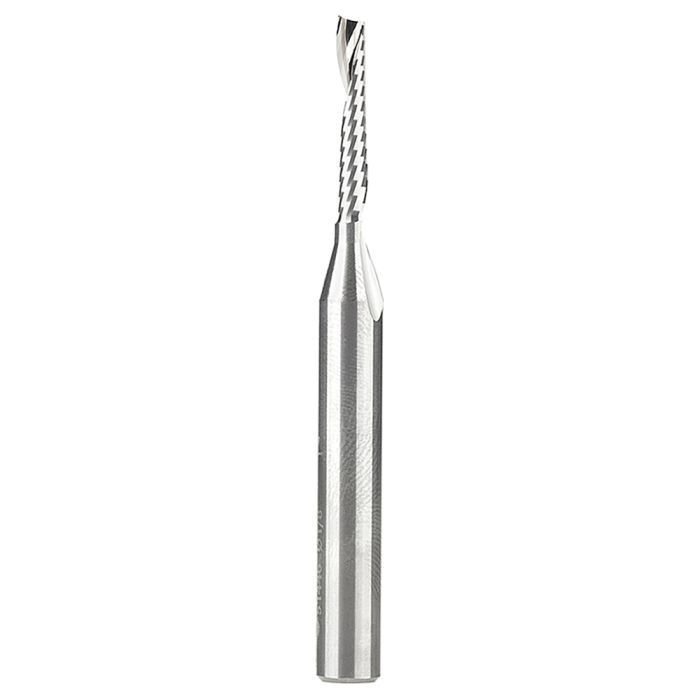

To be used only on CNC machines and routers with automatic feeding. Produce super clean, smooth cuts especially in acrylic materials (Plexiglas Lucite) other plastics and wood. Bits are made according to strict tolerances from an exclusive carbide grade and polished to a mirror finish using Amana’s unique process. Designed to eject chips up. Ideal for industrial applications and CNC machines. Right hand helix right hand cut.
WARNING: Proposition 65 Warning for California Residents View Details
Manufacturer | Amana Tool Corp. |
---|---|
Condition | New |
UPC | 73868511446 |
Features |
|
Application | Plastic/Acrylic, Acetal and Nylon, Acrylic Stone, Acrylonitrile Butadiene Styrene (ABS), Aluminum Composite Material (ACM), Alupanel, Corian, Coroplast, Corrugated Plastics such as Correx Boards and Polypropylene, Crosslinked Polyethylene (XPE, PEX, XLPE) |
Flute Type | Straight O |
Type | Router Bit |
Material | Solid Carbide |
Diameter(D) | 1/8" |
---|---|
Cutter Height(B) | 3/4" |
Shank(d) | 1/4" |
Overall Length(L) | 2-1/2" |
Flutes | 1 |
Direction | Up-Cut |
Style | Spiral |
Max. RPM | 35,000 RPM |
