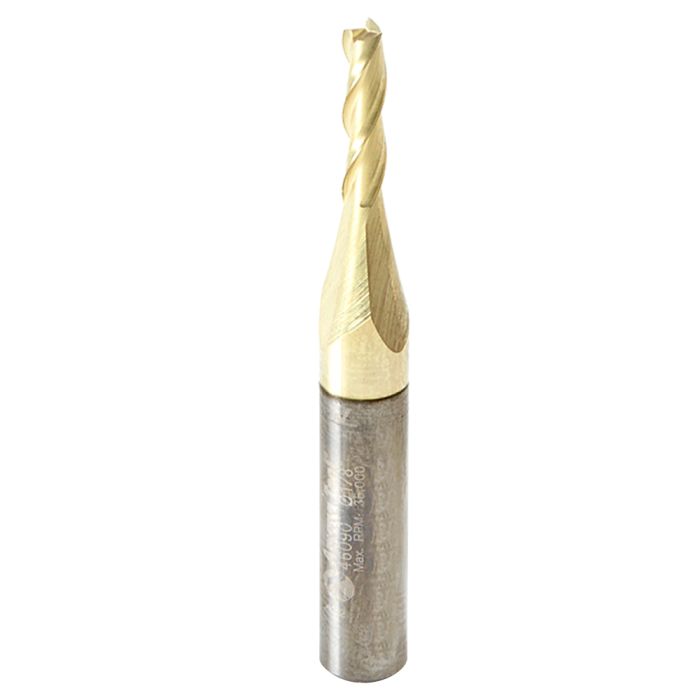

Amana Tool's Modern Materials Finishing Geometry (MMFG) incorporates high shear, multi-flute and a ZrN coating designed for the ultimate combination of finish and tool longevity in aerospace materials. Modern-day materials present challenges to the fabricator using these special multi-flute edge tools featuring ZrN ceramic coating addresses these challenges with a winning geometry combination.
*A soft plastic cardboard made with super soft super flexible PVC.
Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan.
WARNING: Proposition 65 Warning for California Residents View Details
Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
High resistance to wear
Extended tool life
Less friction and heat buildup
High resistance to wear
Flutes
3
Material
Solid Carbide
Type
Router Bit
Diameter (D)
1/8"
Cutting Height (B)
1/2"
Shank Diameter (d)
1/4"
Overall Length (L)
2"
Direction
Up-Cut
Coating
ZrN Coating
Maximum Speed (RPM)
35,000 RPM
Feed Rate IPM** / Chip Load Per Tooth (Composites)
100" - 210" / 0.002" - 0.004"
Feed Rate IPM** / Chip Load Per Tooth (Fiberglass)
