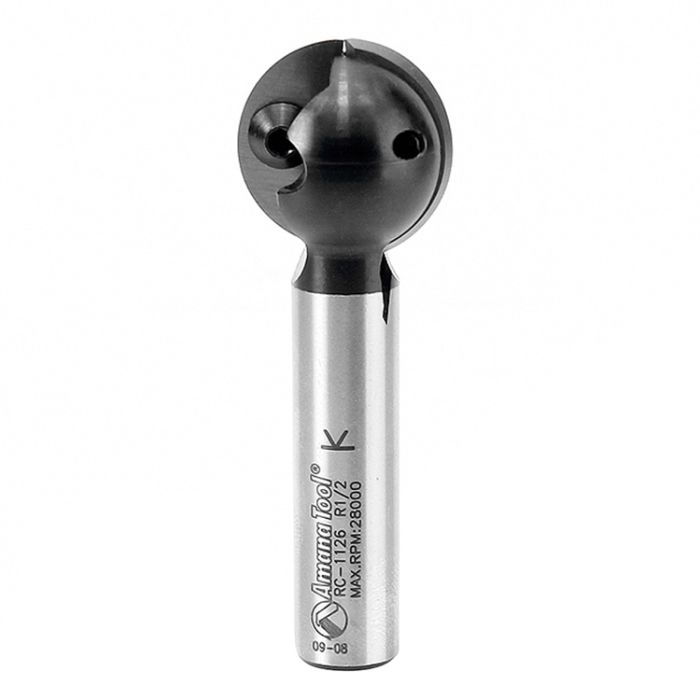

Amana Tool RC-1126 1" Carbide Tipped CNC Ball End Insert Router Bit
SKU
RC-1126
$103.79
Ships direct from manufacturer ?
Cut channels for pipes or cables using the ball end bit. The profile requires the cut to be made in a single pass. To reduce stress on the bit, cut an initial groove using a straight bit matching the D1 dimension of the ball end bit. Profile is useful as a ‘conduit’ for cables pipes etc.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868509126 |
| Type | Router Bit |
| Cutter Height(B) | 1" |
| Diameter(D) | 1" |
| Diameter(D1) | 15/16" |
| Flutes | 2 |
| Material | Carbide Tip |
| Max. RPM | 18,000 RPM |
| Overall Length(L) | 2 7/8" |
| Radius | 1/2" |
| Radius(R) | 1/2" |
| Shank(d) | 1/2" |
| Tool No. | RC-1126 |
| Diameter(D) | 1" |
|---|---|
| Cutting Height (B) | 15/16" |
| Shank(d) | 1/2" |
| Overall Length(L) | 2-7/8" |
| Diameter(D1) | 43/64" |
| Radius(R) | 1/2" |
| Flutes | 2 |
| # of Screw | 67115 |
| Replacement Knives | RCK-54 |
| Max. RPM | 28,000 RPM |
| Style | CNC Ball End Insert |
