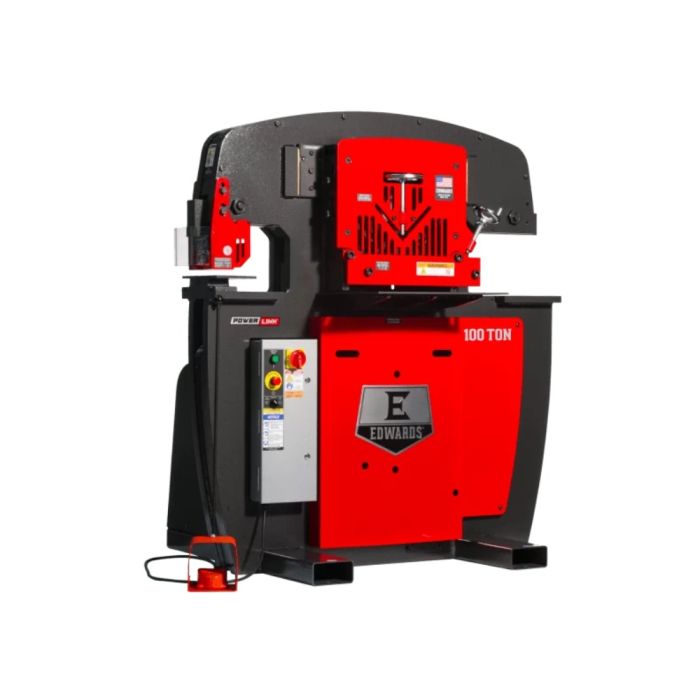

Edwards ED9-IW100-1P230-A 100 Ton 1Ph 230V Hydraulic Ironworker with PowerLink

SKU
ED9-IW100-1P230-A
Special Price $32,795.10 Regular Price $36,439.00
Ships direct from manufacturer?

Our 100 Ton Ironworker provides optimal power and adaptability to handle any project with its four workstations, 13 interchangeable attachments in the open workstation, and 17 accessories to adapt the Ironworker to our needs. Ideal for larger fabrication shops or those jobs requiring heavier materials, this compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend, or cope all in one machine. The Angle Shear blades have 2 corner radii and are made of precision tool steel with 2 cutting edges, while the Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges. The PowerLink System increases our capabilities by turning our Ironworker into a power source for our line of Hydraulic Tools.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerEdwards Ironworkers
ConditionNew
UPC00731325555714
Features
    • Adjustable electric stoke control
    • ANSI B11.5-1988(02) Compliant Guarding
    • Bright LED lights increases visibility
    • Durable, heavy-duty Made in USA steel construction
    • Electric foot pedal with integrated jog control
    • ETL Certified Controls
    • Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
    • Optimized workstation heights for improved efficiency
    • Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
    • Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
Horsepower7.5 HP
Motor Phase1 Ph
Speed (RPM)1,765 RPM
Warranty1 Year
TypeHydraulic Ironworker
Amps36 A
Angle Shear Max Capacity 1/2"6 x 6
Angle Shear Work Height43-15/16"
Coper Notcher Max Capacity2-1/2" x 6" x 1/2"
Coper Notcher Work Height42"
Flat Bar Shear Max Capacity3/4" x 14",1" x 10"
Flat Bar Shear Max Capacity 1"10
Flat Bar Shear Max Capacity 3/4"14
Flat Bar Shear Max Round1-1/4"
Flat Bar Shear Max Round Capacity1-1/4"
Flat Bar Shear Max Square1-1/4"
Flat Bar Shear Rating (Tons)100 Ton
Flat Bar Shear Work Height37"
Hydraulic Pump (GPM)10-1/2 GPM
Hydraulic Reservoir (Gallon)17 Gal
Hydraulics (GPM)10-1/2 GPM
Hydraulics (PSI)3500 PSI
Model NumberIW100-1P230-AC700
Motor Amps36 A
weight4557 lbs
Open Workstation Throat Depth14-3/4"
Open Workstation Work Height37"
Overall Dimensions (L x W x H)45" x 56-1/8" x 61-11/16"
Product Dimensions56-1/8" x 45" x 61-11/16"
Punch Max Capacity (In.)1-1/16" Diameter in 1" mild steel
Punch Open Height8-3/4"
Punch Rating (Tons)100 Ton
Punch Shut Height6-15/16"
Punch Stroke1-13/16"
Punch Work Height39-1/16"
Rating (Tons)100 Ton
Reservoir (Gal.)17 Gal
Shipping Dimensions (L x W x H)46" x 69" x 67"
Valve Pressure (PSI)3500 PSI
Weight4650 lbs
Motor Voltage230V
