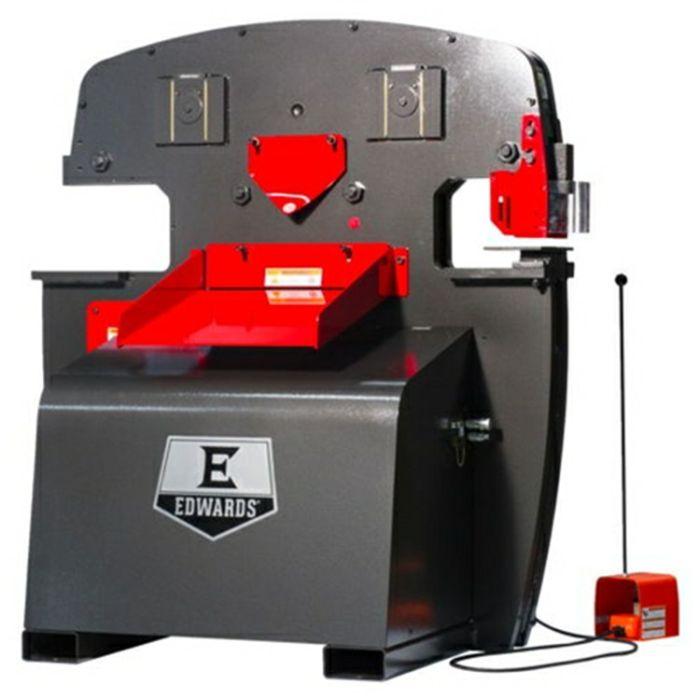

Edwards Ironworkers 10231012 230V 100 Ton Ironworker

SKU
10231012
$35,079.00
Ships direct from manufacturer ?

If you're looking for versatility and power, the Edwards 100 ton ironworker is perfect for your shop. Standard features include a punch assembly, a 14" wide flat bar shear, a high capacity angle shear and a universal open tooling station designed for optional tooling accessories allowing you to select the perfect tool for your needs. The optional powerlink system allows your Ironworker to act as a power source to our expanding line of innovative powerlink hydraulic tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerEdwards Ironworkers
ConditionNew
Features
  • Four available workstations
  • High capacity angle shear
  • Universal open tooling station
  • Electric stroke control
  • ANSI B11.5-1988R(02) compliant
  • ETL/UL approved controls
Specifications

Punch

Rating 100 Tons
Maximum Capacity 1 1/16" Diameter in 1" A36 (65,000 PSI Tensile)
Stroke 1 13/16"
Throat Depth 11"
Open Height 8 3/4"
Shut Height 6 15/16"
Work Height 39 1/16"

Flat Bar Shear

Maximum Capacity 3/4" x 14", 1" x 10"
Maximum Round 1 1/4"
Maximum Square 1 1/4"
Work Height 37"
