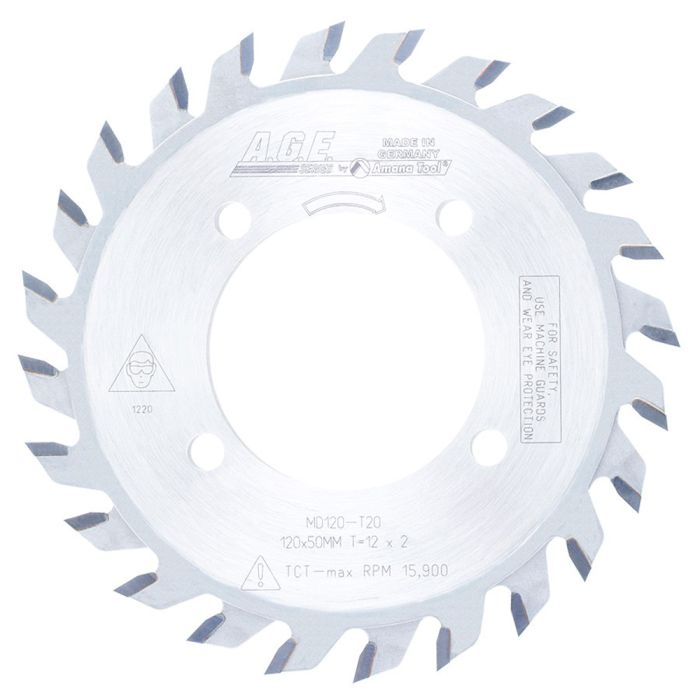

Amana Tool MD120-T20 4.72" Carbide Tipped Adjustable Type Scoring Saw Blade

SKU
MD120-T20
$179.37
Ships direct from manufacturer ?
Chip-free cuts on both sides of the material. Used on vertical panel saws and sliding table saws with separate scoring units for chip-free cuts on both sides of the material. Adjustable scoring sets consist of two 12-tooth saw blades with shims to adjust the kerf width (2.8 mm to 3.6 mm). Used in combination with our plywood/laminate series triple chip blades only.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC73868563120
ApplicationScoring Particleboard and Double Sided MDF Laminate, Double Sided Melamine, Plastic Laminate
Tooth GrindAlternate Top Bevel (ATB)
Number of Teeth24
Pinholes4/ 6.4 /62 Countersunk
TypeSaw Blade
Diameter (D)4.72"
Bore Diameter (d)1 31/32"
Hook Angle (a°)12 Deg
Blade Thickness (Kerf)0.110" - 0.142"
Plate (C)0.078" (x2)
Speed (RPM)15,900 RPM
MaterialCarbide Tip
Not RecommendedNon Ferrous Alloys
Suitable for Use withAltendorf Rapido Scoring System
