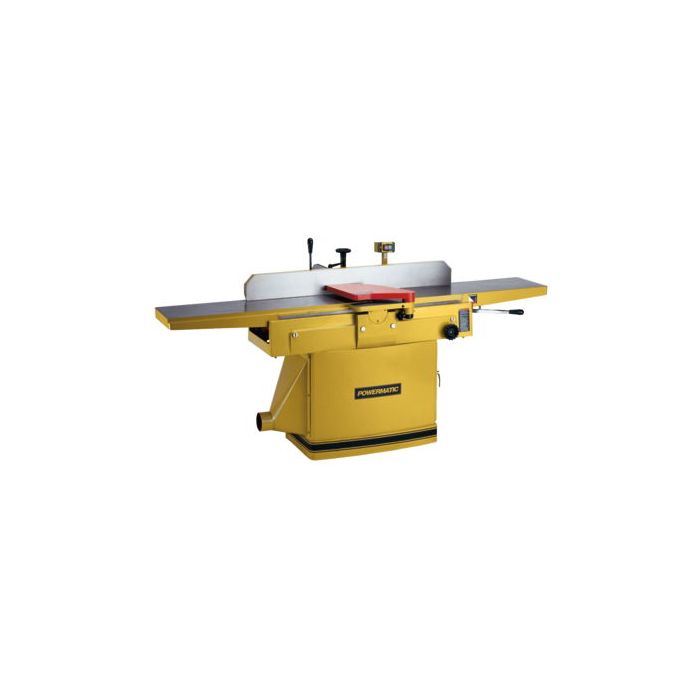

Powermatic 1791241 1285 12" Parallelogram 230V Jointer, 3HP/1Ph

SKU
1791241
$7,299.99
Ships direct from manufacturer?
This 12 inch jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45 degree in and out and a positive stop for perfect 90 degree angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. Choose either the standard straight knife cutterhead or the helical cutterhead.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
Manufacturer Powermatic
Condition New
UPC 66275529678
Features
  • Straight knife cutterhead with 3 high speed steel knives create a clean cut
  • Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
  • Large 12 inch x 84 inch precision ground cast iron table surface for heavy-duty work
  • Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
  • Table "lips" on both sides of cutterhead aid in noise reduction
  • Full size rabbeting ledge supports large workpieces for rabbets up to 3/4 inch deep
PDFs
Horsepower 3 HP
Motor Phase 1 Ph
Type of CutterheadStraight
Motor Voltage230 V
Recommended Circuit Size30 Amps
Dust Port Outside Diameter4"
Dust Collection Minimum CFM Required800 CFM
Fence Positive Stops45, 90, -45 Deg
Fence Tilt45 Forward, 45 Backward
Fence Length47 1/4"
Fence Height5 1/4"
Rabbeting Capacity3/4"
Table Height from Floor315/8"
Table Length84"
Table Width12"
Cutting Capacity Width11 3/4"
Cutting Capacity Depth3/4"
Speed (RPM)5,000 RPM
Cuts Per Minute15,000 CPM
Number of Knives3 High Speed Steel Straight Knives
