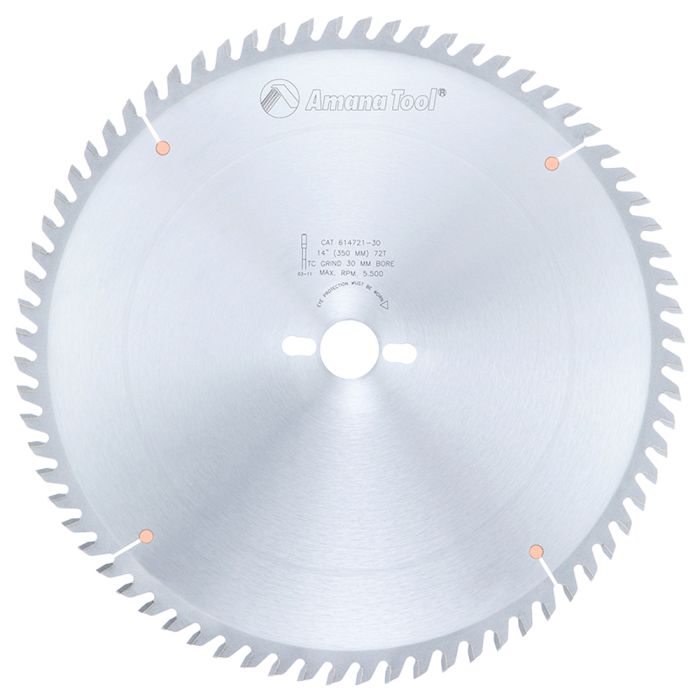

Amana Tool 614721-30 14" Carbide Tipped Heavy Duty General Purpose Saw Blade
SKU
614721-30
$192.16
Ships direct from manufacturer ?
While this blade handles general trimming and crosscutting of hardwood and softwood, plywood and composition materials, it excels at cutting single or double-sided plastic-laminated material. It leaves a smooth, clean, chip-free finish on the top and bottom edges. The blades in this series feature a high tooth count, the triple-chip grind and a 10 degree hook angle for a successful compromise between feed effort and cut finish.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Amana Tool Corp. |
|---|---|
| Condition | New |
| UPC | 73868514721 |
| Application | Plastic Laminate, Single and Double Sided, MDF/Fiberboard |
| Type | Saw Blade |
| Bore | 30 mm |
| Diameter(D) inch | 14" |
| Diameter(D) mm | 350 mm |
| Grind | Triple Chip Grind (TCG) |
| Hook(a°) | 10 Deg |
| Kerf(B) Inch | 0.137" |
| Kerf(B) mm | 3.5 mm |
| Material | Carbide Tip |
| Pinholes | 2/10/60 |
| Plate(C) Inch | 0.098" |
| Plate(C) mm | 2.5 mm |
| Teeth | 72 |
| Tool No. | 614721-30 |
| Blade Material | Carbide Tip |
|---|---|
| Blade Diameter | 14" |
| Teeth per Inch | 72 |
| Arbor Size | 30 mm |
| Tooth Grind | Triple Chip Grind (TCG) |
| Blade Type | General Purpose Saw |
| Hook Angle | 10 Deg |
| Blade thickness (Kerf) | 0.137" |
| Plate | 0.098" |
| Pinholes | 2/7/42, 2/9/46 & 2/10/60 |
| Speed (RPM) | 5,500 RPM |
