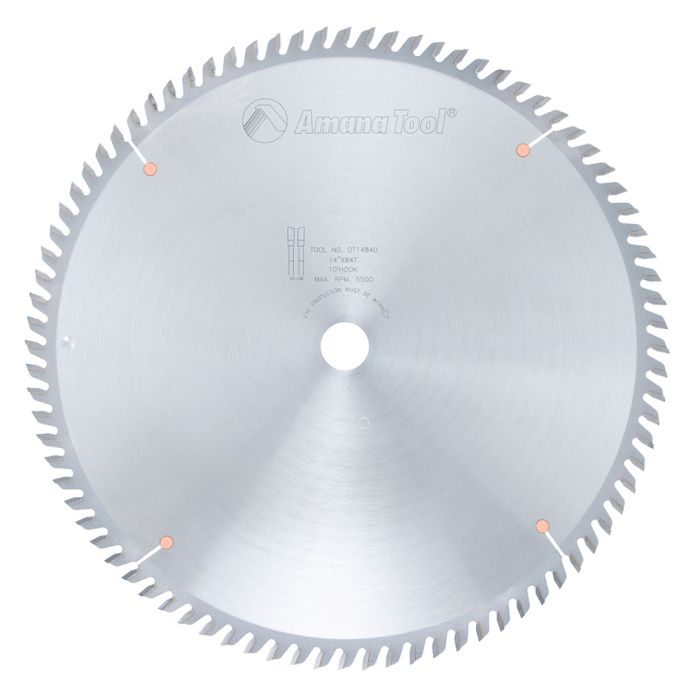

Amana Tool DT14840 14" x 84T Carbide Tipped Sliding Table Saw Blade

SKU
DT14840
$218.93
Ships direct from manufacturer?
The blades incorporate an exceptional array of features: high tooth count, expansion slots and turbulence-dampening copper plugs. The Ditec carbide tips add exceptional sharpness and long tool life to these features.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerAmana Tool Corp.
ConditionNew
UPC73868514840
Features
  • Exclusive Ditec carbide tips
  • Higher reliability and lower maintenance
  • Low noise level
  • Laser cut saw bodies
  • Excellent cutting quality
  • For maintenance grinding, use fine grit (D400 to D600) diamond wheels. To match the factory grind, use a slower than normal feed rate
  • Damaged teeth can be replaced by any grade of carbide tooth. Replacing of a large number of teeth will, of course, shorten the life of the saw blade
  • Since the carbide in the Ditec is harder than other carbides, it is critical that you protect them from “thermal shock” if an adjacent tooth is replaced
  • Heat absorbed during the brazing process will seriously degrade the Ditec carbide
ApplicationSoft/Hardwood Crosscut, Cabinet Plywood Rip/Crosscut
Tooth GrindAlternate Top Bevel (ATB)
Number of Teeth84
TypeSaw Blade
Diameter (D)14"
Bore Diameter (d)1"
Hook Angle (a°)10 Deg
Blade Thickness (Kerf)0.137"
Plate (C)0.098"
MaterialCarbide Tip
Maximum Speed (RPM)5,500 RPM
Suitable for Use withSliding Table Saws, Such as Striebig, Altendorf, SCMI, Delta, and Regular Table Saws
