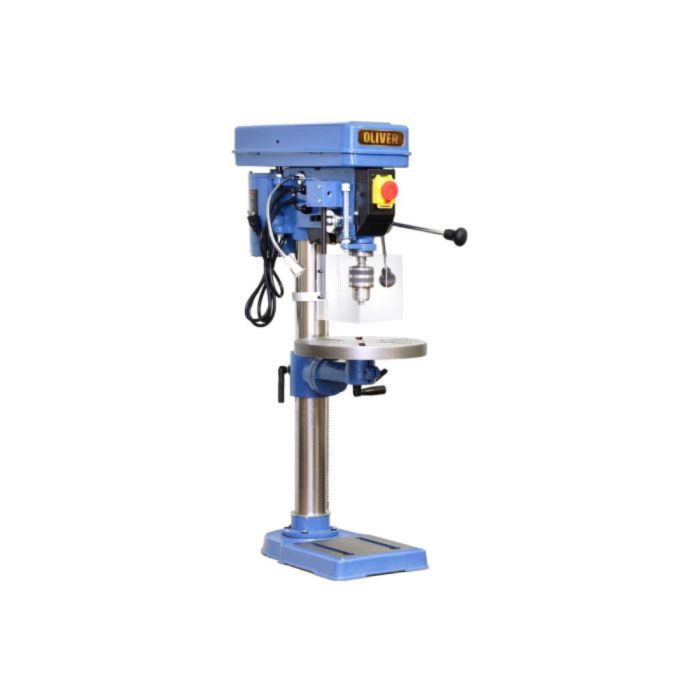

Oliver Machinery 10060.001, 14" Swing Bench Model Drill Press

SKU
10060.001
$769.99
Ships direct from manufacturer ?

Available in bench or floor model version.

Line interrupt switch requires manual start in the event of a power loss.

Spindle is supported by high quality sealed ball bearings.

LED lamp provides a well lit work area.

Table rotates 360° and tilts 45°.

Crank operation moves table up and down with locking clamp.

Laser pointer is built-in for precise repeat drilling.

Drill chuck guard included.

5/8”chuck and key holder included.

Cast iron pulleys reduce vibration.

Positive depth stop allows repeated operations with ease.

Powerful 1/2 HP Motor.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerOliver Machinery
ConditionNew
Motor Phase1 Ph
Speed (RPM)280 to 3,000 RPM
TypeDrill Press
Bench Type14" Bench
Swing13-1/4"
Drilling Capacity3/4"
Chuck Capacity5/8"
Chuck TaperJT-3
Table Size11-1/2" Round
Table Tilt+/- 45 Deg
Spindle TaperMT-2
Spindle Travel3-1/8"
Spindle Speeds12
Spindle to Table17-3/4"
Spindle to Base25-1/4"
Column Diameter2-7/8"
Base Size9-5/8" x 16-3/4"
Overall Height38-1/2"
Motor1/2HP, 1Ph 115V (8 Amps)
Weight105 lbs
