Lamello 145356 Clamex P-14 Connectors, 1000/Box

SKU
145356
$1,500.00
In Stock

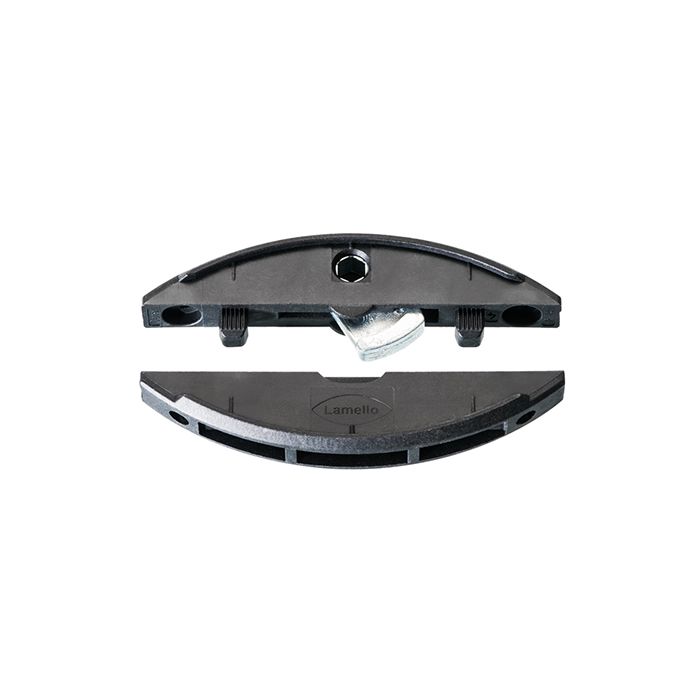

Clamex P-14 is a detachable furniture fitting on the basis of the P-system anchorage and is connected with a lever. The form-locking P-system anchorage allows for an exceptionally fast and powerful anchorage in the work piece without tools. Clamex P needs neither glue nor screw, providing the woodworker with uncountable advantages in the production process and in the differentiation from standard furniture fittings. For example, Clamex P can serve to join either detachable or glued furniture miters. The small 6 mm openings for hexagonal keys make the fitting unique and differentiate clamex P from standard furniture fittings.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
Manufacturer Lamello
Condition New
Features
  • Practically wear-free knock down fitting
  • Detachable miter connector for 22.5-180degree angles and all butt joints
  • Minimal tool opening of just 6 mm
  • Extremely rapid, tool-free installation of fittings
  • Stackable for transport, despite integrated connector
  • High clamping force of ca. 80 kg for gluing furniture at all angles
  • Lateral tolerance for efficient installation with the Zeta P2 profile groove biscuit joiner or a CNC machine
PDFs
Material Fiberglass Reinforced Plastic Shell, Zinc Die Cast Lever
Package Size 1,000
Width27 mm
Length66 mm
Height9.7 mm
Cutting Size100.4 mm Diameter, 7 mm x 22 mm
Tensile Strength800 N Particle Board, 1000 N Beech
Special FeaturesP-14 CNC
