Lamello 145371 Clamex Medius Detachable Connectors, 300 Pair per Box

SKU
145371
$510.00
In Stock

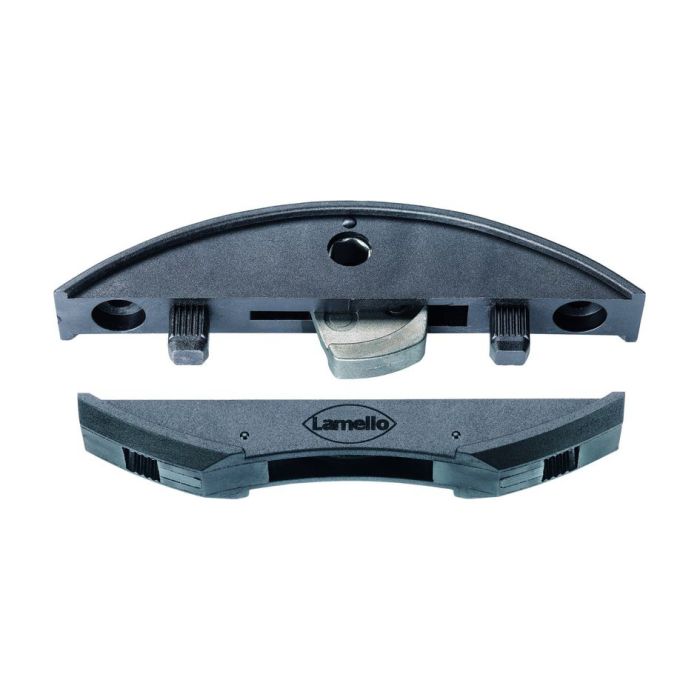

Clamex P medius complements the clamex P-14 connection fittings for shelves where two shelves meet the same height position on the middle side. The middle wall connector clamex P medius is second, whereby the installation depths differ. The connector half with lever for installation in the tray is anchored with a 14 mm deep P-system groove. The second connector half is only 10 mm thick and can be used back-to-back in a middle side of only 16 mm in thickness due to the crescent-shaped cutout. The positive-locking P-system anchoring allows a fast, strong anchoring in the workpiece without tools. Clamex P dispenses with glue or screws and brings countless advantages in the manufacturing process and in the differentiation to furniture standards.
WARNING: Proposition 65 Warning for California Residents View Details
More Information
Manufacturer Lamello
Condition New
Features
  • Removable connecting fitting without significant wear
  • Equilateral positioning of the P-system groove on both sides possible from a material thickness of 16 mm
  • Smallest operator hole only 6mm
  • Extremely quick tool-free installation of the fittings
  • Stackable for transport despite the built-in connector
  • Lateral sliding tolerance for efficient installation with the profile grooving machine Zeta P2 or by CNC machine
PDFs
Material Fiberglass Reinforced Plastic Shell, Zinc Die Cast Lever
Package Size 300
TypeP Medius
Width14.5 mm, 7.5 mm
Length66 mm, 52 mm
Height9.7 mm
Cutting Size100.4 mm Diameter, 7 mm x 22 mm
Tensile Strength600 N Particle Board, 900 N Beech
