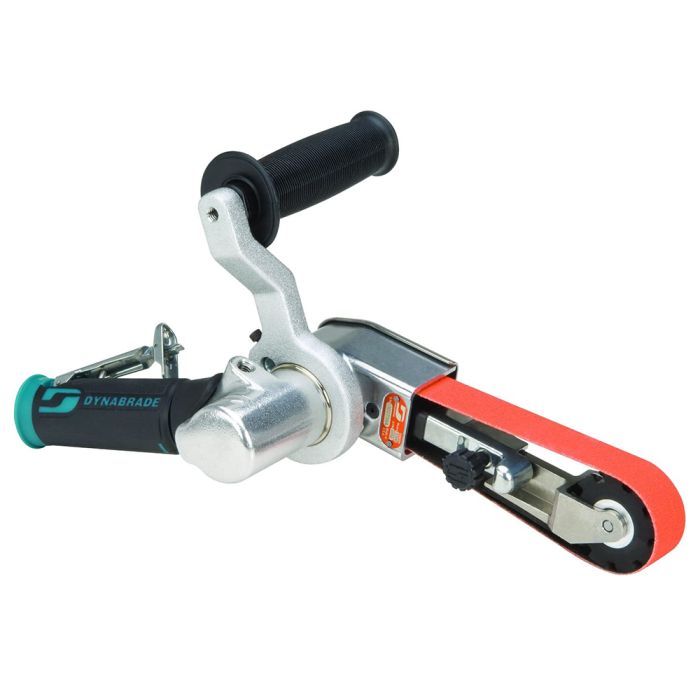

Dynabrade 15300 Dynafile III 1/4" 7 Degree Offset Front Exhaust Abrasive Belt Tool

SKU
15300
$940.00
Ships direct from manufacturer ?

Utilizing 1" wide abrasive belts and the slack portion of the contact arm. The Dynafile III easily blends and polishes bends in pipes while maintaining original dimensions. The added horsepower provided by the 0.7 hp motor in the Dynafile III efficiently powers 1" wide belts in both grinding and polishing applications.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerDynabrade
ConditionNew
UPC00616026153004
Features
  • Dynafile III abrasive belt tool offers all the versatility of our world-famous Dynafile II, while serving up more power (0.7 Hp/522 Watt) for faster material removal
  • High-efficiency rubber drive Wheel, ideal for use with all abrasive belts
  • Tool grinding head pivots 360 degree
  • Soft grip handle assembly allows operator to apply additional force to contact wheel
  • Handle also offers enhanced control and maneuverability
  • Optional safety-lock throttle lever is available
  • Sound level is the pressure measurement according to the method outlined in ISO regulation ISO-15744
Includes
  • High-efficiency Rubber Drive Wheel
  • 15350 Contact Arm
PDFs

Catalog

ApplicationFor Grinding Welds, Blending and Deburring
Belt Size 1/4" - 1" W x 18" L
Horsepower0.7 HP
Pressure Rating (PSI)90 PSI
Speed (RPM)20,000 RPM
WarrantyLimited Lifetime
Type Abrasive Belt Tool
Sound 81 dB(A)
Maximum Air Flow Rate 37 SCFM
Maximum SFPM 4,550 SFPM
Air Inlet Thread Size 1/4"
Air Inlet Thread Type NPT
Hose Inner Diameter 3/8"
Exhaust Type Front
Vacuum Type Non-Vacuum
Motor Type Rotary Vane
EAC Certified Yes
CE Certified Yes
Tool Style 7 Degree Offset
Length 13.4"
Height 5.5"
Width 10"
Weight 3.5 lbs
