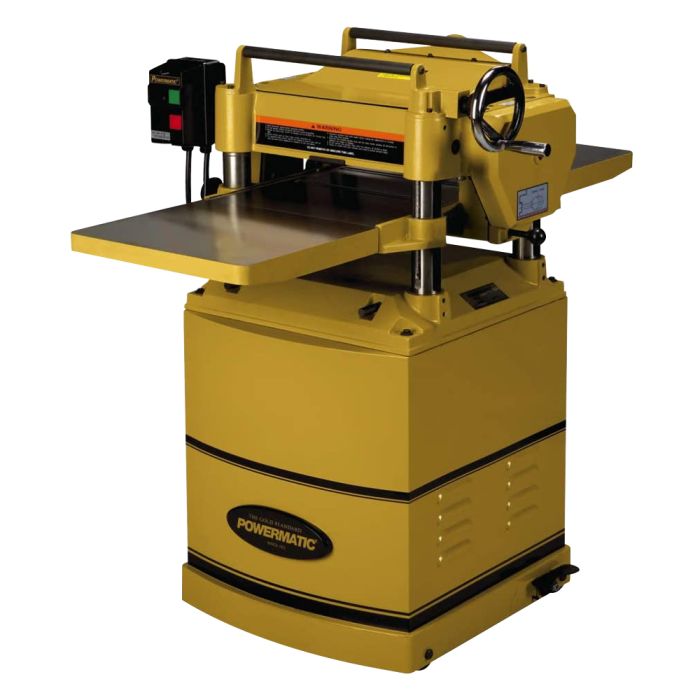

Powermatic 1791213 15HH 15" Helical Head Planer, 230V, 3HP/1Ph
SKU
PM9-1791213
$4,399.00
Ships direct from manufacturer ?
The helical cutterhead on this planer provides smoother cutting and a finer finish than conventional knives and the 74 four-sided indexable carbide knife inserts do not require adjustment after installing. Three V-belts transfer maximum power from the 3HP motor to the cutterhead. Your workpiece will get substantial support from the precision ground cast iron table and two large extension wings. The 4 inch dust port angles the collection hose away from the work area. Stock return rollers atop the machine speed repetitive cuts. The serrated steel infeed and smooth steel outfeed roller allow for 1/8 inch maximum depth of cut and trouble-free operation. A 2-speed gearbox features an automatic chain tensioner. The one-piece welded steel stand has built-in lockable casters for easy movement around the shop.
WARNING: Proposition 65 Warning for California Residents View Details
| Manufacturer | Powermatic |
|---|---|
| Condition | New |
| UPC | 66275591541 |
| Features |
|
| PDFs | |
| Horsepower | 3 HP |
| Motor Phase | 1 Ph |
| Stationary type | Floor |
| Warranty | 5 Year |
| Motor Voltage | 230 V |
|---|---|
| Prewired Voltage | 230 V |
| Recommended Circuit Size | 30 Amps |
| Dust Port Outside Diameter | 4" |
| Dust Collection Minimum CFM Required (CFM) | 800 CFM |
| Column Diameter | 2 3/16" |
| Table Support | 4 Column |
| Table Size with Extensions Length | 15" |
| Table Size with Extensions Width | 48" |
| Table Size Length | 48" |
| Table Size Width | 15" |
| Feed Rate | 16/20 FPM |
| Minimum Planing Length | 8" |
| Maximum Planing Thickness | 6" |
| Maximum Planing Width | 14 7/8" |
| Maximum Full Width Depth of Cut | 1/8" |
| Maximum Depth of Cut | 3/16" |
| Number of Knives | 74 Four Sided Carbide Helical Inserts |
| Cutterhead Diameter | 2 7/8" |
| Cutterhead Speed (RPM) | 4,500 RPM |
| Type of Cutterhead | Helical |
