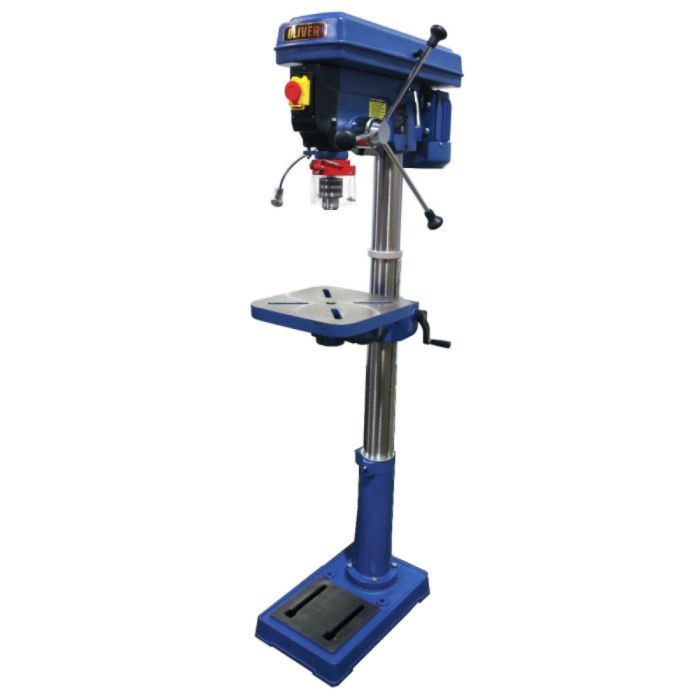

Oliver Machinery 10062.001, 17" Swing Floor Model Drill Press

SKU
10062.001
$1,249.99
Ships direct from manufacturer?

Line interrupt switch requires manual start in the event of a power loss.

Spindle is supported by high quality sealed ball bearings.

LED lamp provides a well lit work area.

Table rotates 360° and tilts 45°.

Crank operation moves table up and down with locking clamp.

Laser pointer is built-in for precise repeat drilling.

Drill chuck guard included.

5/8”chuck and key holder included.

Cast iron pulleys reduce vibration.

Positive depth stop allows repeated operations with ease.

Powerful 3/4 HP Motor.

WARNING: Proposition 65 Warning for California Residents View Details
More Information
ManufacturerOliver Machinery
ConditionNew
Motor Phase1 Ph
Speed (RPM)240 to 3,400 RPM
TypeDrill Press
Floor Type14" Floor
Swing17"
Drilling Capacity3/4"
Chuck Capacity5/8"
Chuck TaperJT-3
Table Size12" x 12"
Table Tilt+/- 45 Deg
Spindle TaperMT-2
Spindle Travel3-1/8"
Spindle Speeds16
Spindle to Table28"
Spindle to Base48-1/2"
Column Diameter3-1/8"
Base Size11-3/4" x 19-5/8"
Overall Height64-1/2"
Motor3/4HP 1Ph 115V (12 Amps)
Weight200 lbs
